Motor Modules Booksize
6.5 Motor Modules Liquid Cooled
Booksize Power Units
480 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

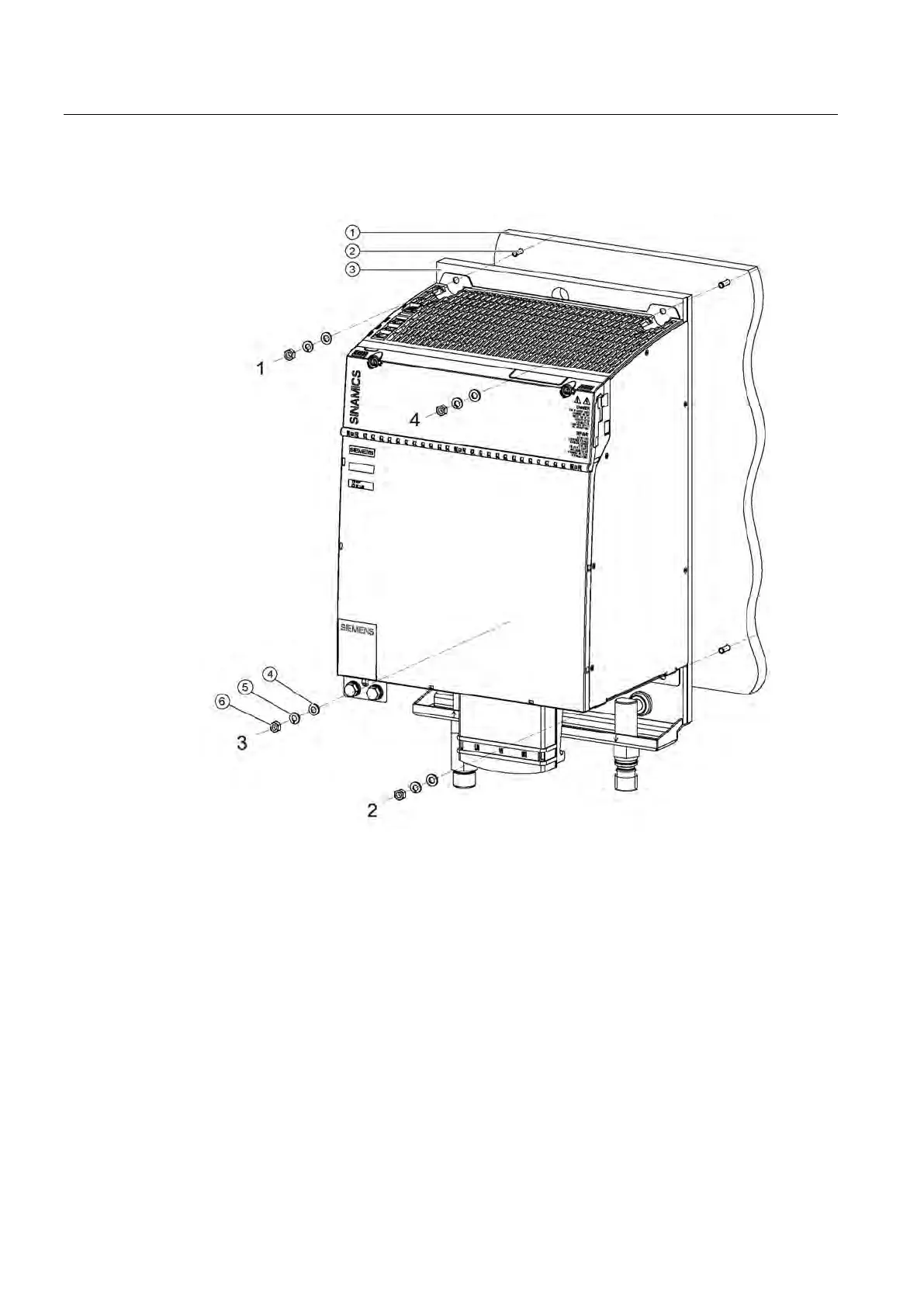

Figure 6-105 Installing a Motor Module Liquid Cooled
:
● Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 10 Nm
