Line Modules Booksize
4.6 Basic Line Modules with internal air cooling
Booksize Power Units
248 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Characteristics

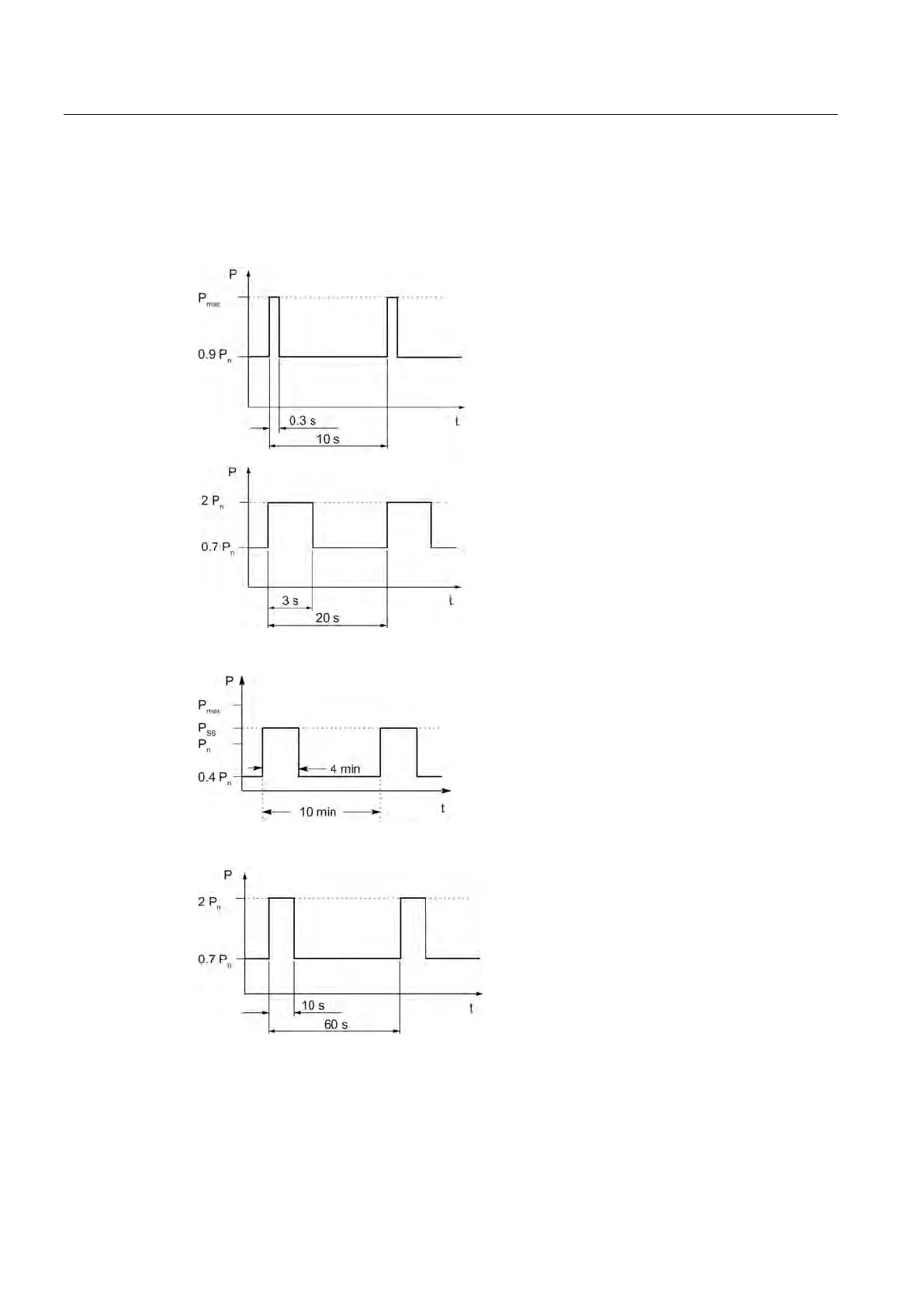

Rated duty cycles for Basic Line Modules
Figure 4-55 Duty cycles with initial load
Figure 4-56 S6 duty cycle with pre-load condition
Figure 4-57 Duty cycle with pre-load condition for 20 kW and 40 kW Basic Line Modules
