Line Modules Booksize
4.6 Basic Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
249

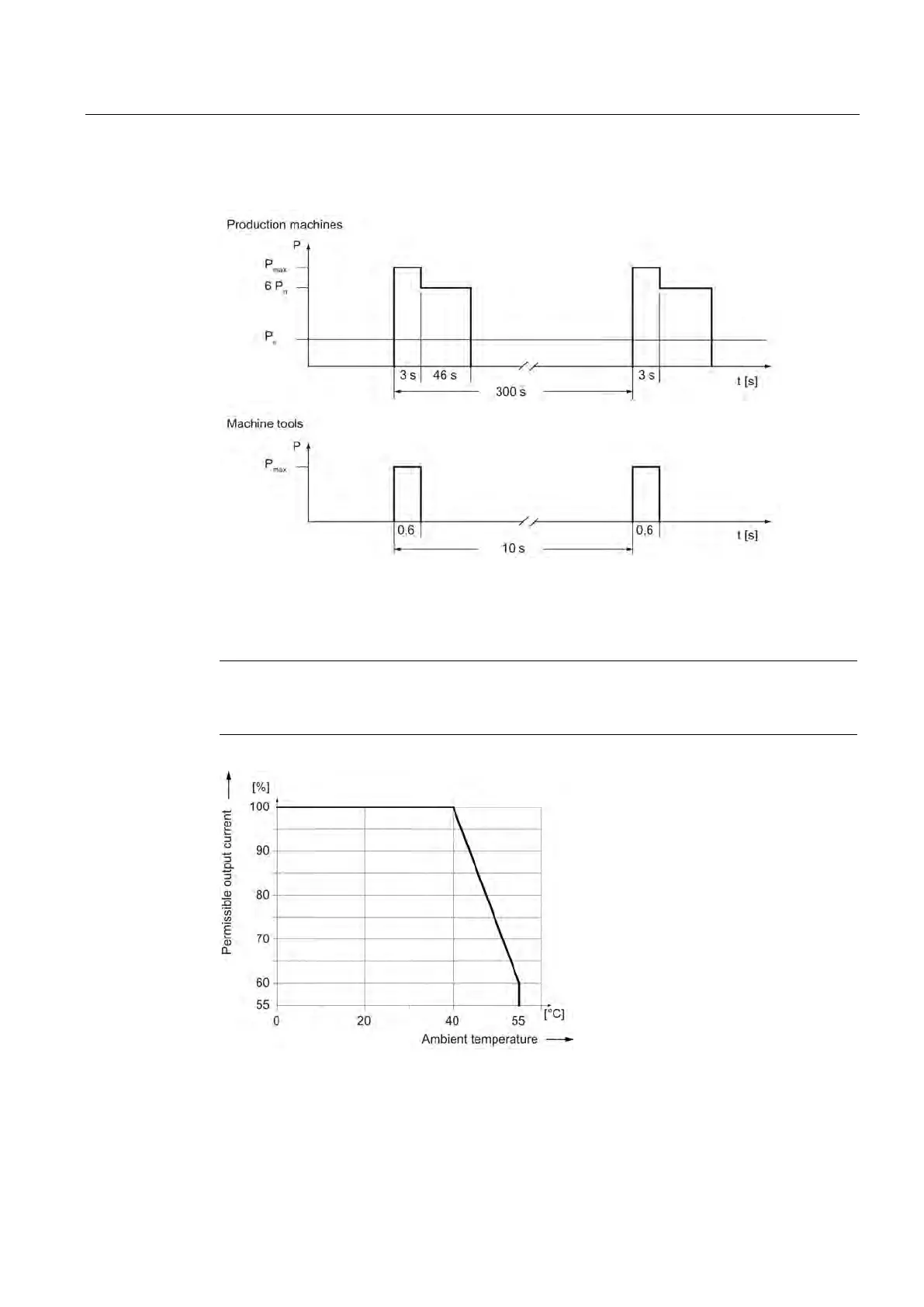

Braking duty cycle for Basic Line Modules
Figure 4-58 Braking duty cycle for Basic Line Modules
Note
For additional information, see chapter
Derating as a function of the installation altitude and
(Page 47).
Figure 4-59 Output current as a function of the ambient temperature
