Siemens 6SL3120-2TE21-0AA3

Line Modules Booksize
4.7 Basic Line Modules with cold plate
Booksize Power Units
258 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
4.7.3
Connection examples

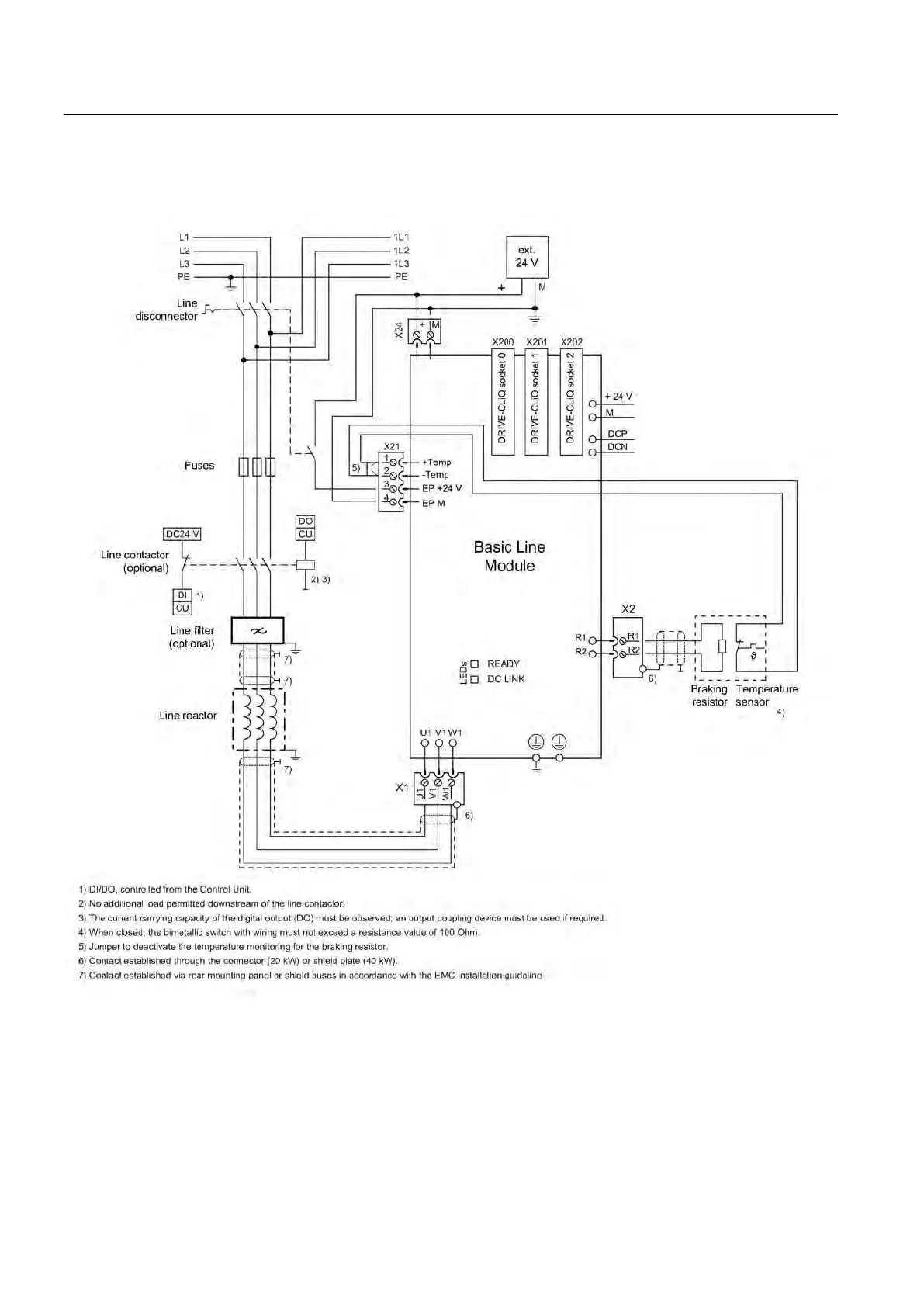

Figure 4-62 Connection example: Basic Line Module (20 kW and 40 kW)
