Siemens 6SL3120-2TE21-0AA3

Line Modules Booksize
4.7 Basic Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
259

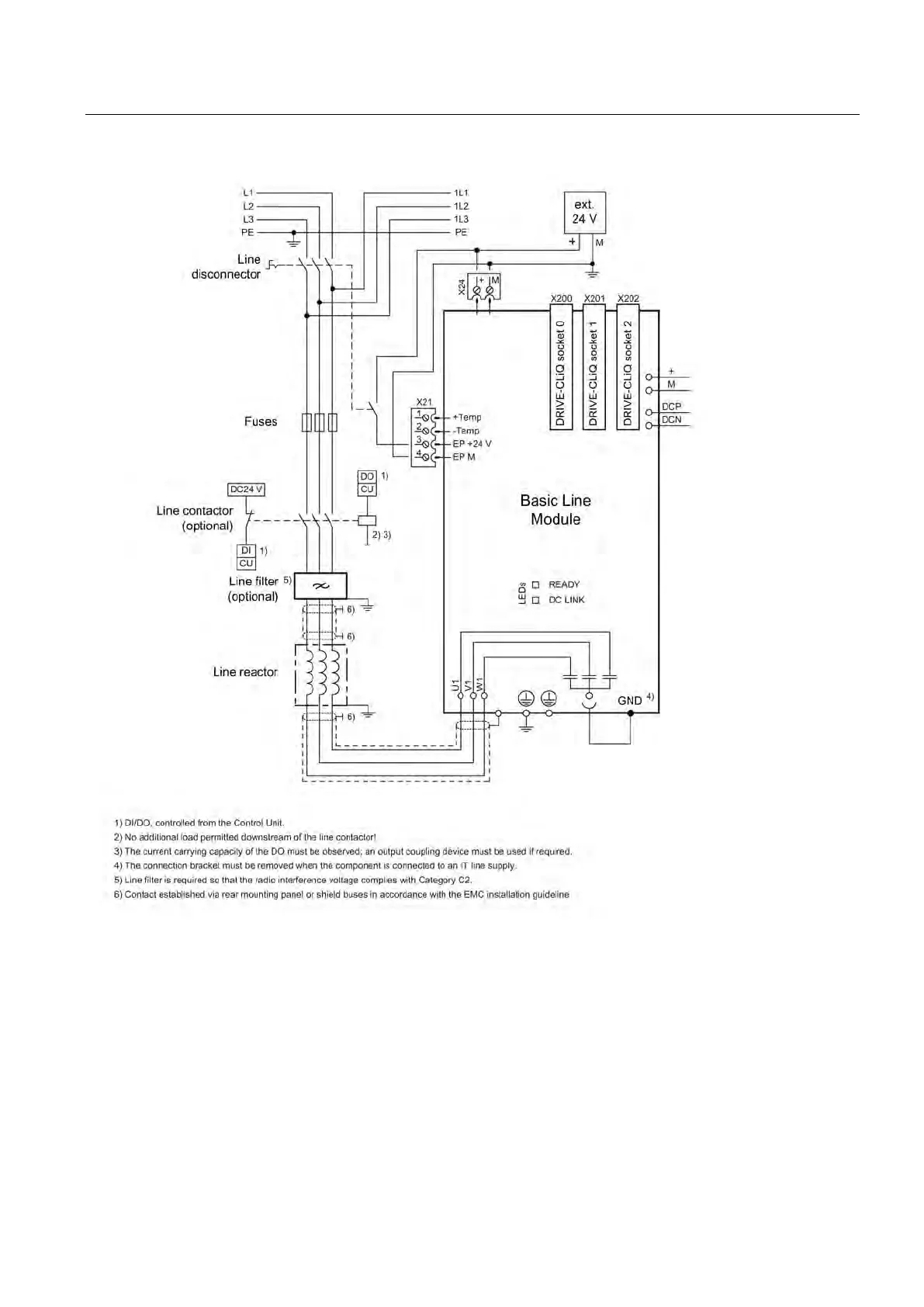

Figure 4-63 Connection example: Basic Line Module (100 kW)
