Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
112 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

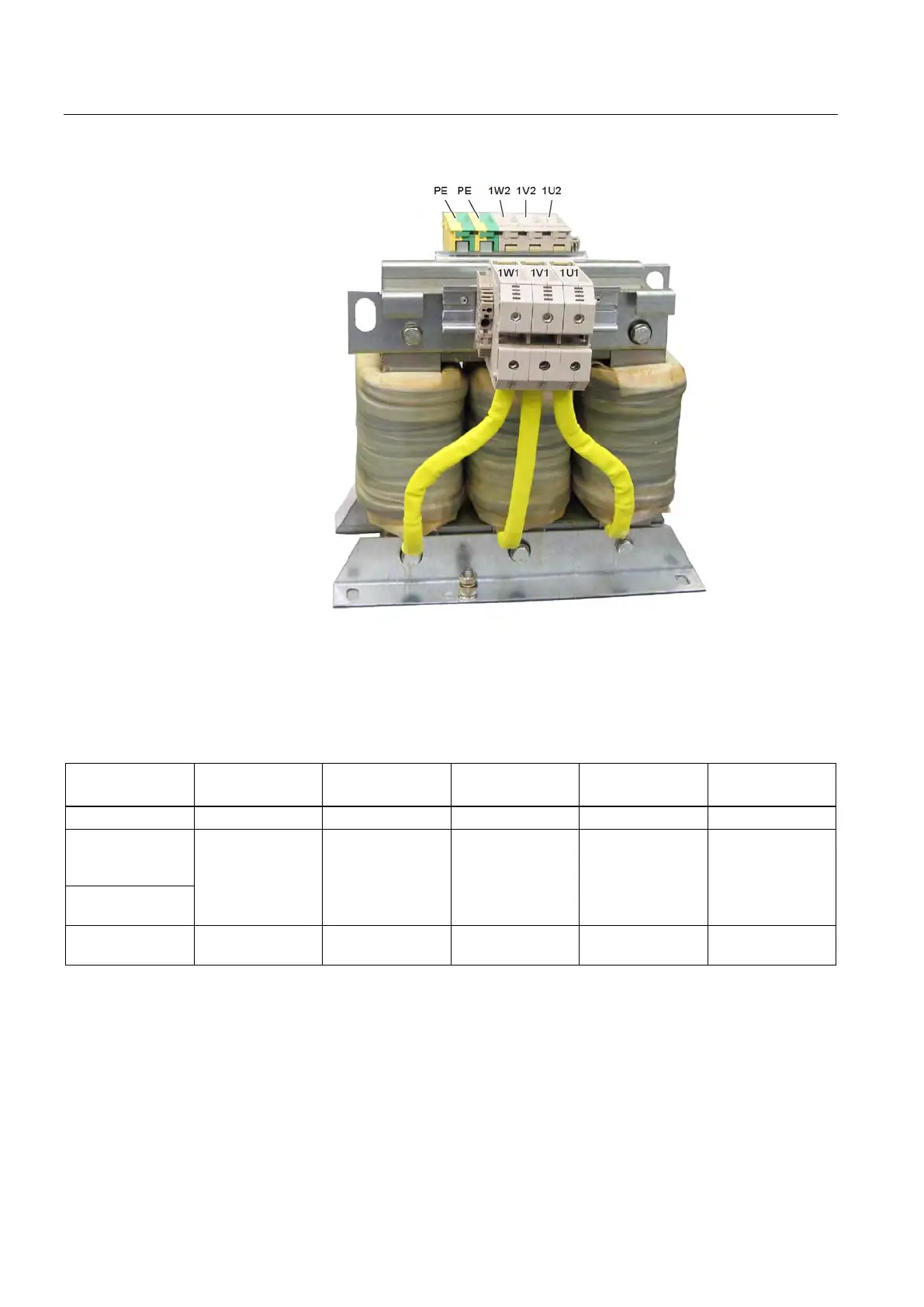

Figure 3-46 Interface overview, line reactors for Smart Line Modules (example: 55 kW)
Line/load connection
Table 3- 19 Line and load connection line reactors for Smart Line Modules
6SL3000-0CE15-
0AAx
6SL3000-0CE21-
0AAx
6SL3000-0CE21-
6AAx
6SL3000-0CE23-
6AAx
6SL3000-0CE25-
5AAx
Power
5 kW
10 kW
16 kW
36 kW
55 kW
Line supply
connection
1U1, 1V1, 1W1
Screw-type
terminals
4 mm
2
0.6 … 0.8 Nm
Screw-type
terminals
10 mm
2
1.5 … 1.8 Nm
Screw-type
terminals
10 mm
2
1.2 … 1.5 Nm
Screw-type
terminals
35 mm
2
2.5 Nm
Screw-type
terminals
70 mm
2
8 … 12 Nm
Load connection
1U2, 1V2, 1W2
PE connection Screw M4
2 Nm
Screw M4
2 Nm
Terminal studs
M5
1)
Terminal studs
M6
1)
Terminal studs
M8
1)
1)
For ring cable lugs without insulation
