Siemens 6SL3120-2TE21-0AA3

Line Modules Booksize
4.2 Active Line Modules with internal air cooling
Booksize Power Units
166 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

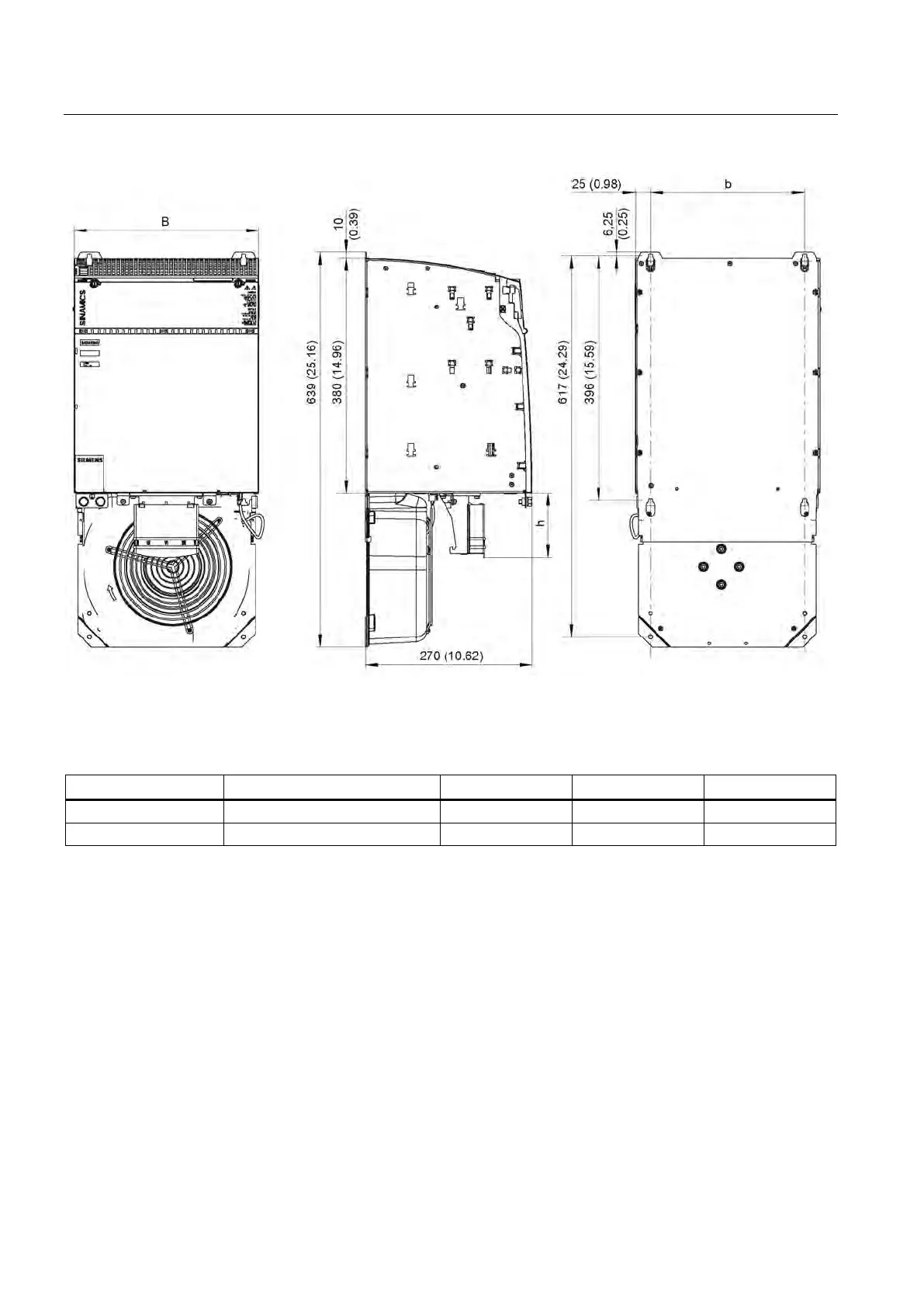

Figure 4-5 Dimension drawing of 80 kW and 120 kW Active Line Modules with internal air cooling, all dimensions in mm
and (inches)
Table 4- 9 Dimensions of 80 kW and 120 kW Active Line Modules with internal air cooling
Active Line Module
Order number
B [mm] (inches)
b [mm] (inches)
h [mm] (inches)
80 kW
6SL3130-7TE28-0AAx
300 (11.81)
250 (9.84)
105 (4.13)
120 kW
6SL3130-7TE31-2AAx
300 (11.81)
250 (9.84)
105 (4.13)
