Line Modules Booksize
4.3 Active Line Modules with external air cooling
Booksize Power Units
188 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Help with the mechanical control cabinet design is available from:
Siemens AG
Industry Sector, IA DT MC MF - WKC AS
TCCCC (Technical Competence Center Cabinets Chemnitz)
Postfach 1124
09070 Chemnitz, Germany
e-mail: cc.cabinetcooling.aud@siemens.com

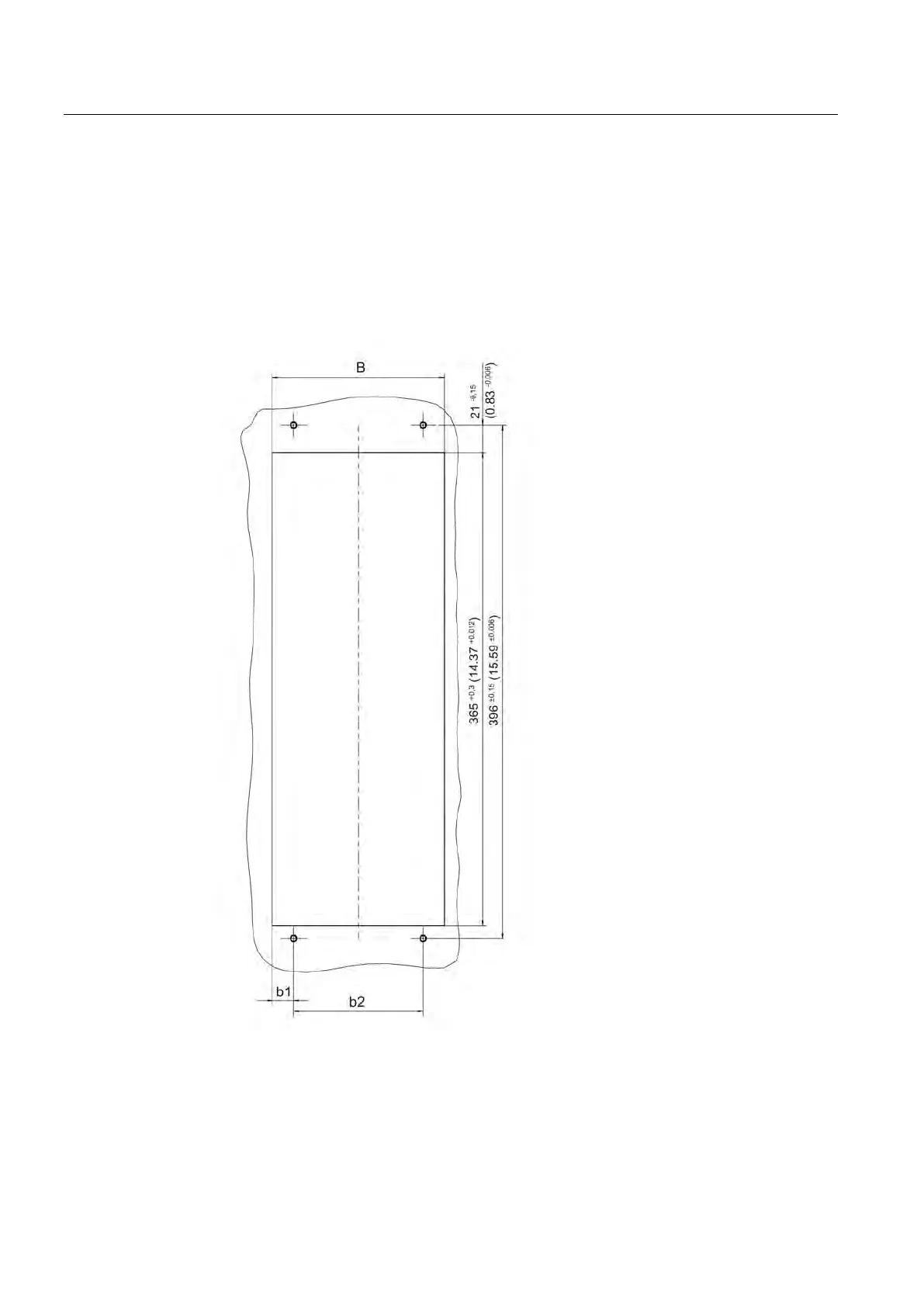

Figure 4-20 Openings to mount Active Line Modules 50 mm to 200 mm with external air cooling, all
data in mm and (inches)
