Line Modules Booksize
4.3 Active Line Modules with external air cooling
Booksize Power Units
192 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Air inlet - filter with filter fan
To maintain the degree of protection IP54, the surfaces
between the mounting plate and the cabinet strip as
well as between the mounting plate and insert plate must be sealed all around. (for example, sealant Terostat-91
from the Teroson company)

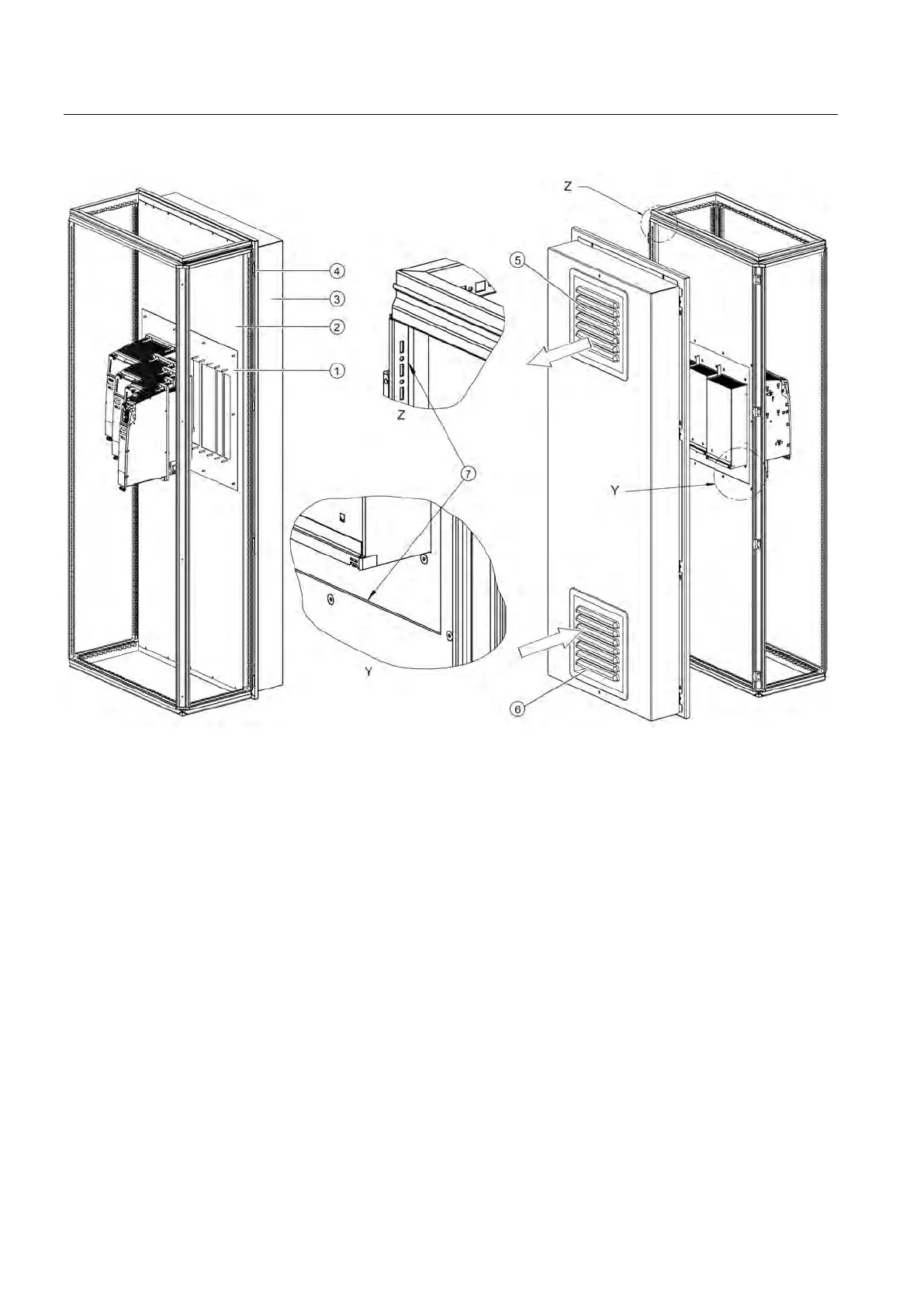

Figure 4-24 Example 2: mounting in the cabinet with mounting plate
We recommend that you attach a cover and filter fan to the cabinet.
The filtered fan must be fitted in such a way that the cooling air required by the drive line-up
is not restricted. The overall cooling air requirement is obtained from the sum of the
individual components (see Chapter Technical data (Page 193)).
