Line Modules Booksize
4.4 Active Line Modules with cold plate
Booksize Power Units
208 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

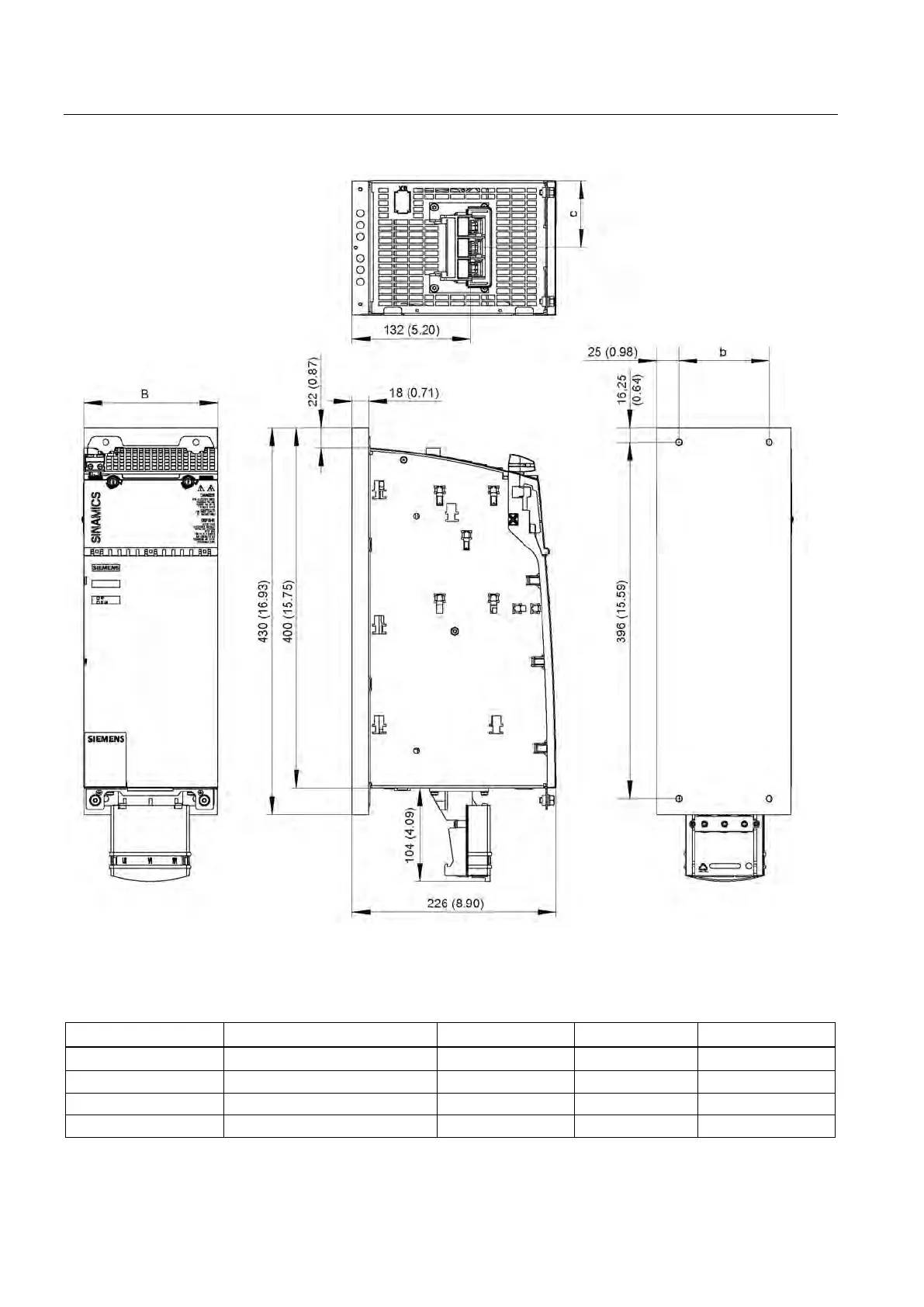

Figure 4-33 Dimension drawing of 36 kW, 55 kW, 80 kW, and 120 kW Active Line Modules with cold plate, all dimensions
in mm and (inches)
Table 4- 31 Dimensions of 36 kW, 55 kW, 80 kW, and 120 kW Active Line Modules with cold plate
Active Line Module
Order number
B [mm] (inches)
b [mm] (inches)
c [mm] (inches)
36 kW
6SL3136-7TE23-6AAx
150 (5.91)
100 (3.94)
75 (2.95)
55 kW
6SL3136-7TE25-5AAx
200 (7.87)
150 (5.91)
100 (3.94)
80 kW
6SL3136-7TE28-0AAx
300 (11.81)
250 (9.84)
150 (5.91)
120 kW
6SL3136-7TE31-2AAx
300 (11.81)
250 (9.84)
150 (5.91)
