Line Modules Booksize
4.4 Active Line Modules with cold plate
Booksize Power Units
210 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
External heat sink (air or liquid)

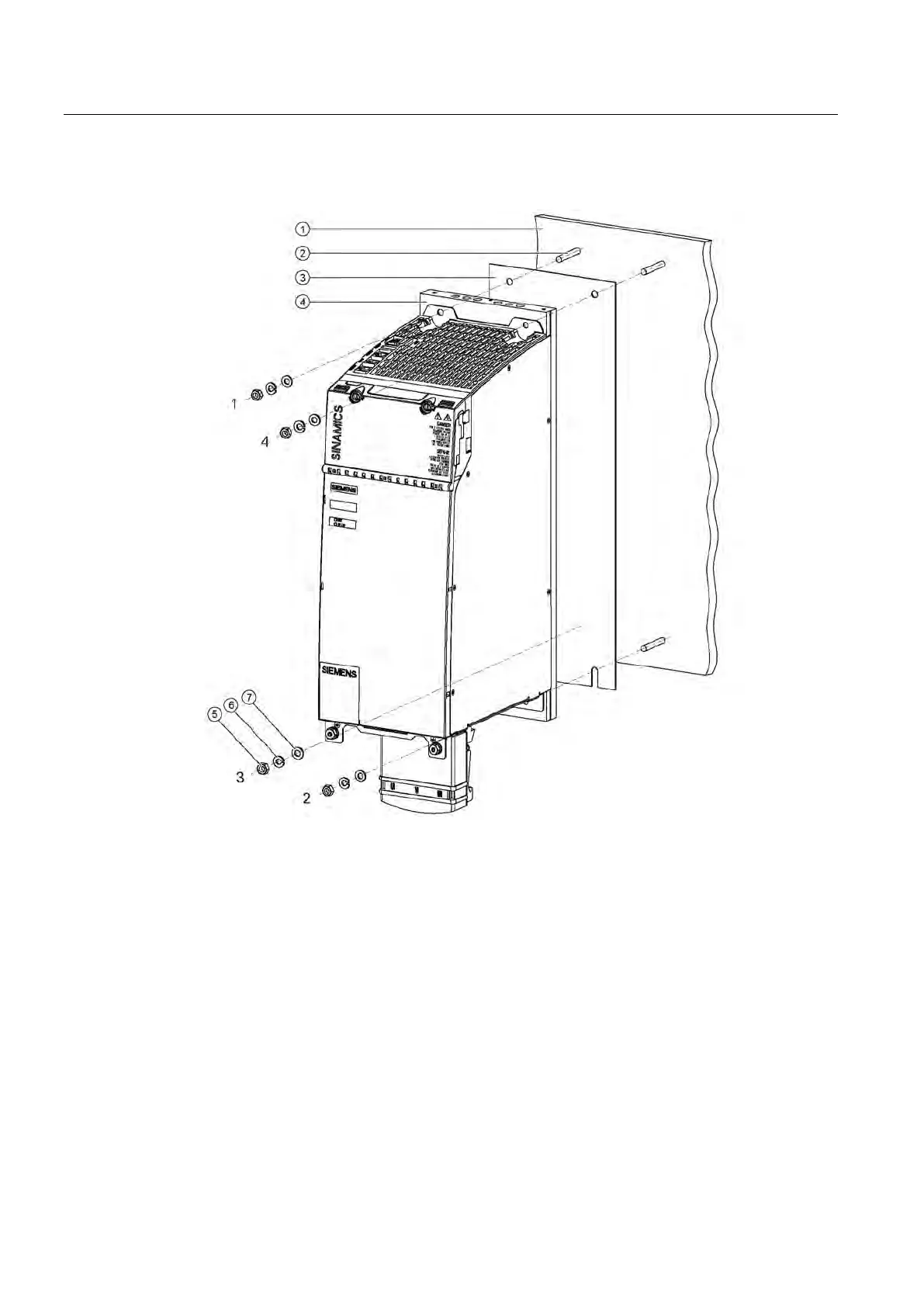

Figure 4-34 Mounting an Active Line Module with cold plate on an external heat sink (example: 36
kW)
:
● Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 10 Nm
