Line Modules Booksize
4.7 Basic Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
265

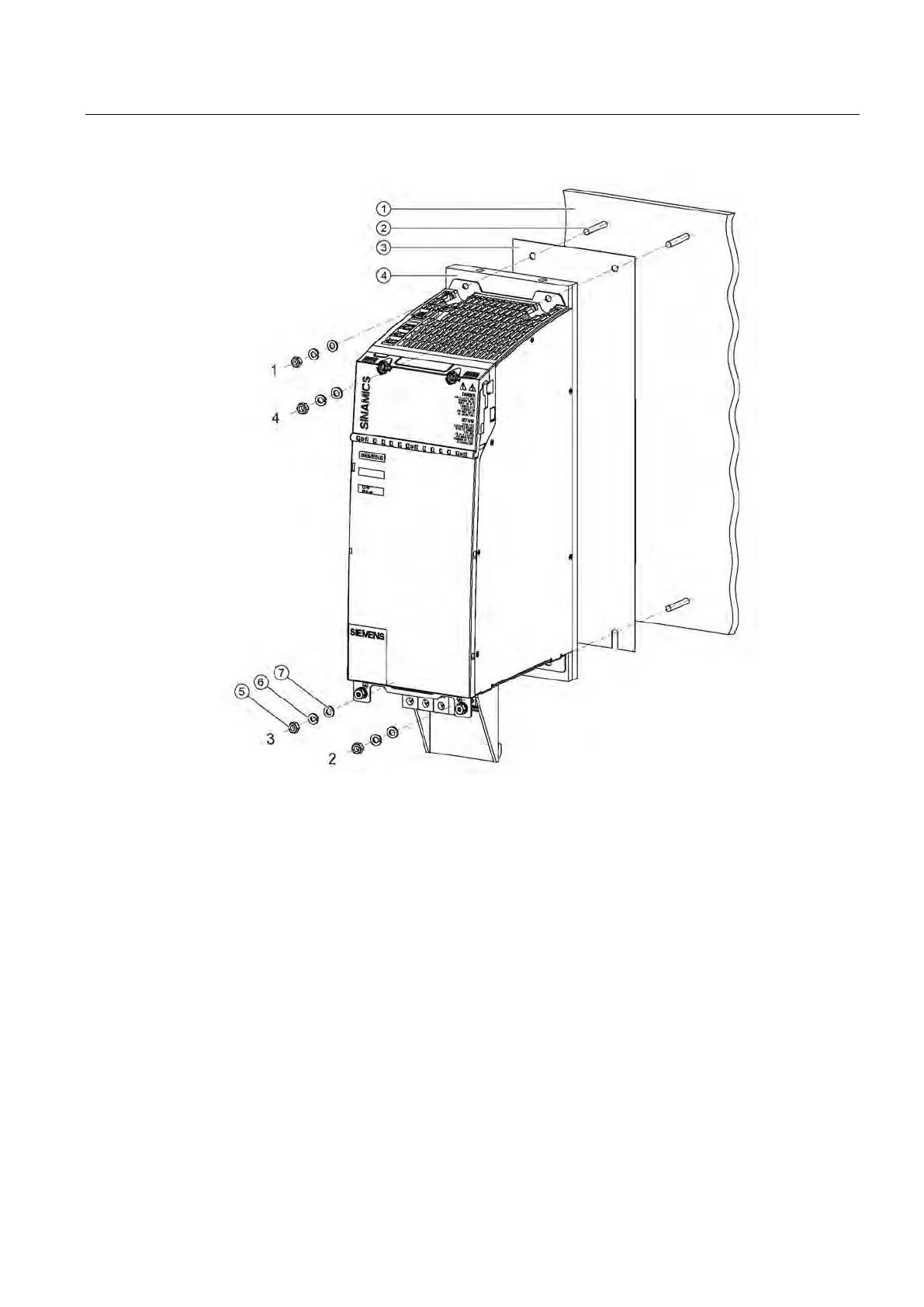

Figure 4-67 Mounting a Basic Line Module 40 kW with cold plate on an external heat sink
:
● Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 10 Nm
