Line Modules Booksize
4.7 Basic Line Modules with cold plate
Booksize Power Units
272 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Braking duty cycle for Basic Line Modules

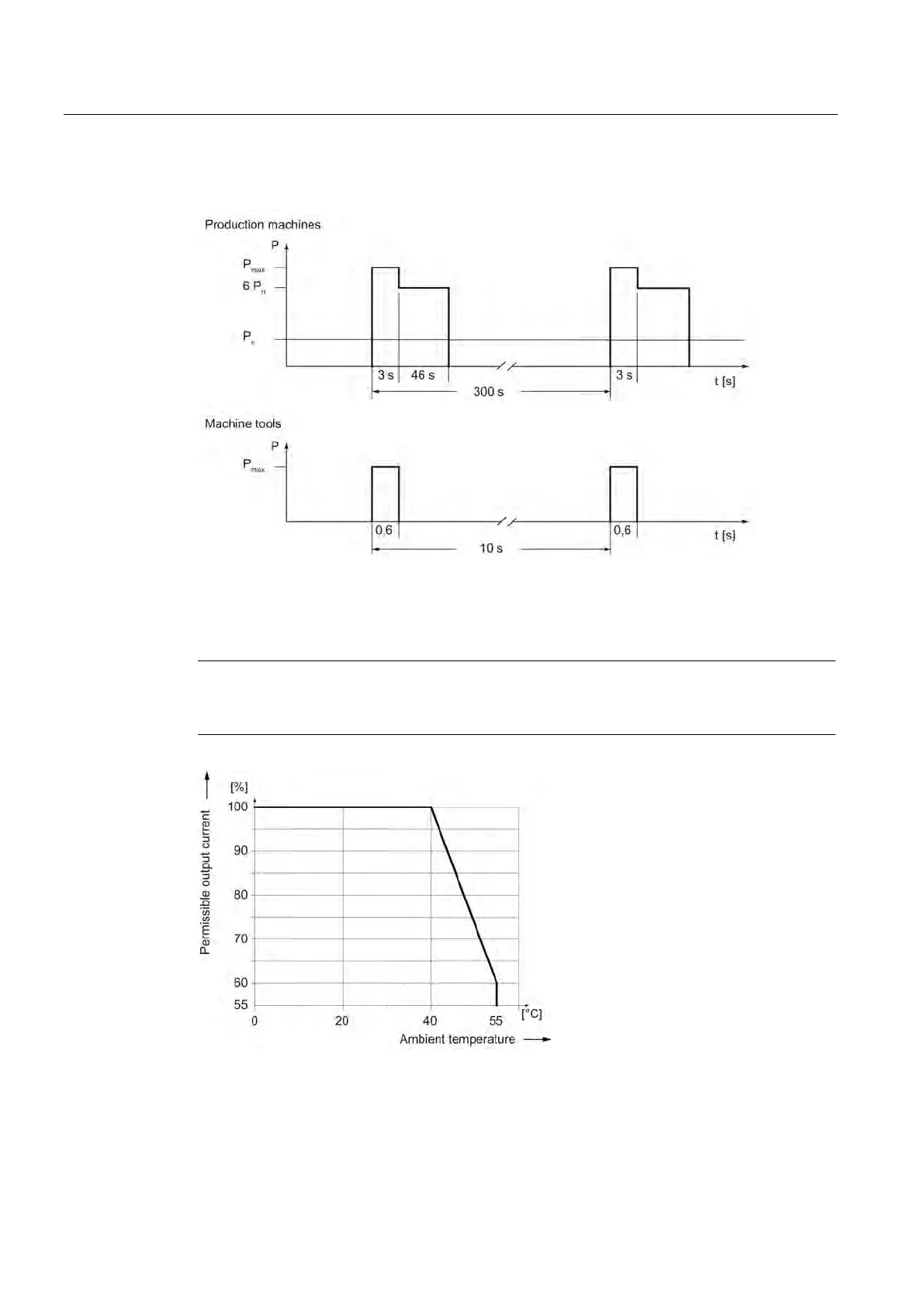

Figure 4-72 Braking duty cycle for Basic Line Modules
Note
For additional information, see chapter
Derating as a function of the installation altitude and
(Page 47).
Figure 4-73 Output current as a function of the ambient temperature
