Line Modules Booksize
4.8 Smart Line Modules with internal air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
287

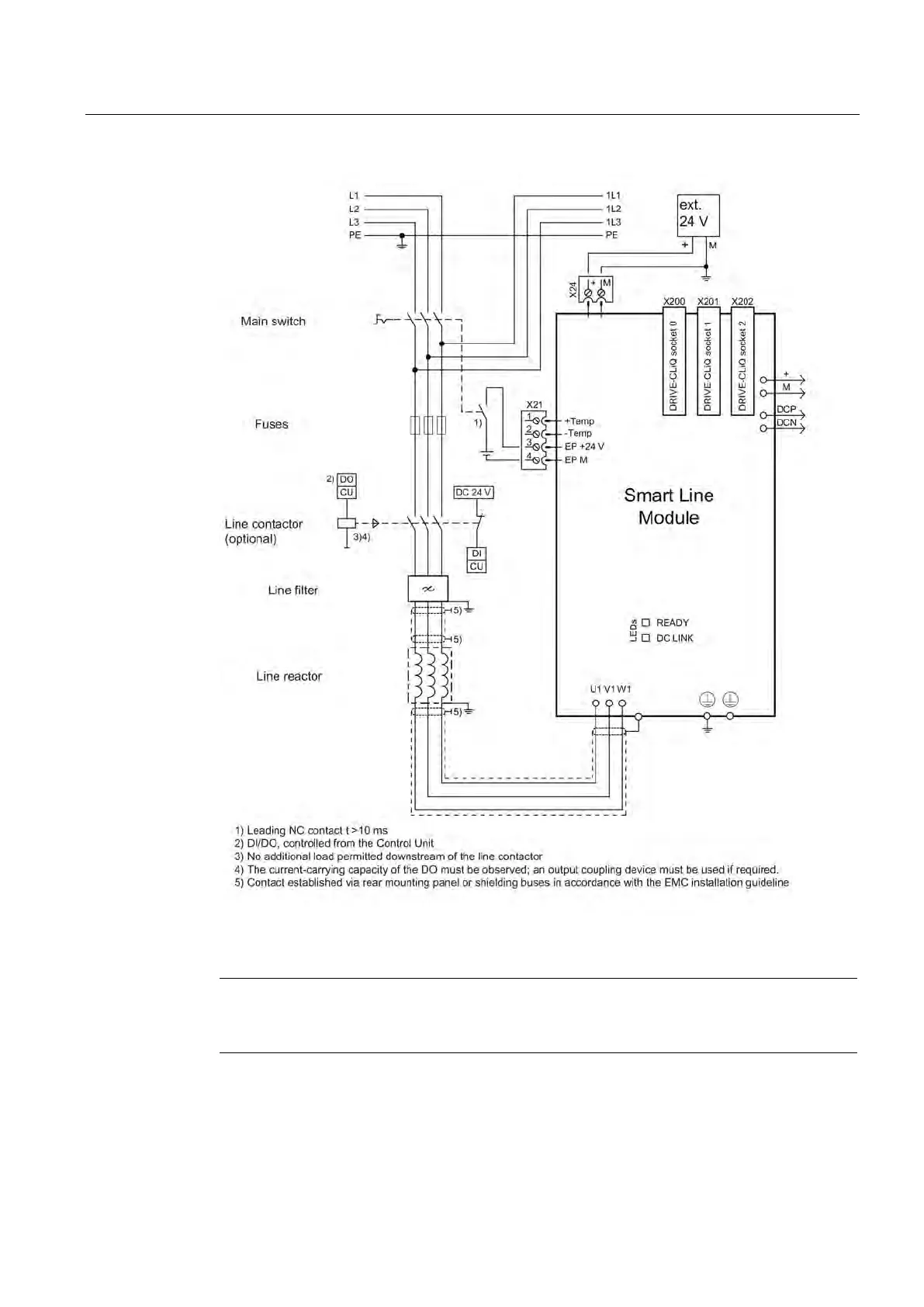

Figure 4-79 Connection example for 16 kW to 55 kW Smart Line Modules
Note
If you are using a VSM10 Voltage Sensing Module, the leading opening contact can be
omitted.
