4.9 Smart Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
305

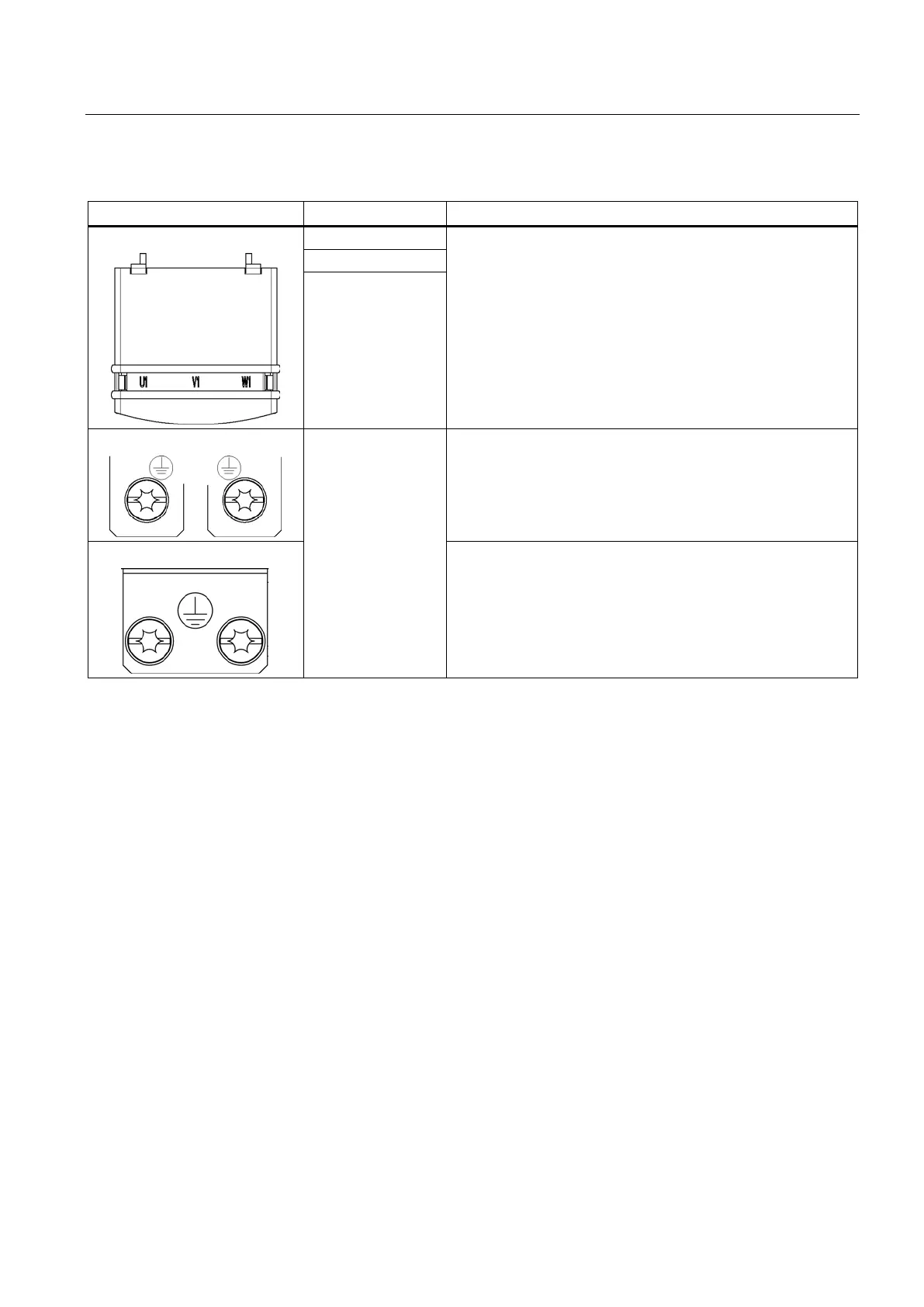

Table 4- 76 X1: Line connection for Smart Line Modules 36 kW and 55 kW
Terminal
Technical data
U1
Supply voltage:
3 AC 380 … 480 V, 50 / 60 Hz
36 kW
: Threaded bolt M6 / 6 Nm
1)
55 kW
: Threaded bolts M8 / 13 Nm
1)
V1
W1
PE connection
36 kW
: Threaded hole M6 / 6 Nm
1)
55 kW
: Threaded hole M6 / 6 Nm
1)
1)
For ring cable lugs without insulation
