Line Modules Booksize
4.9 Smart Line Modules with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
317

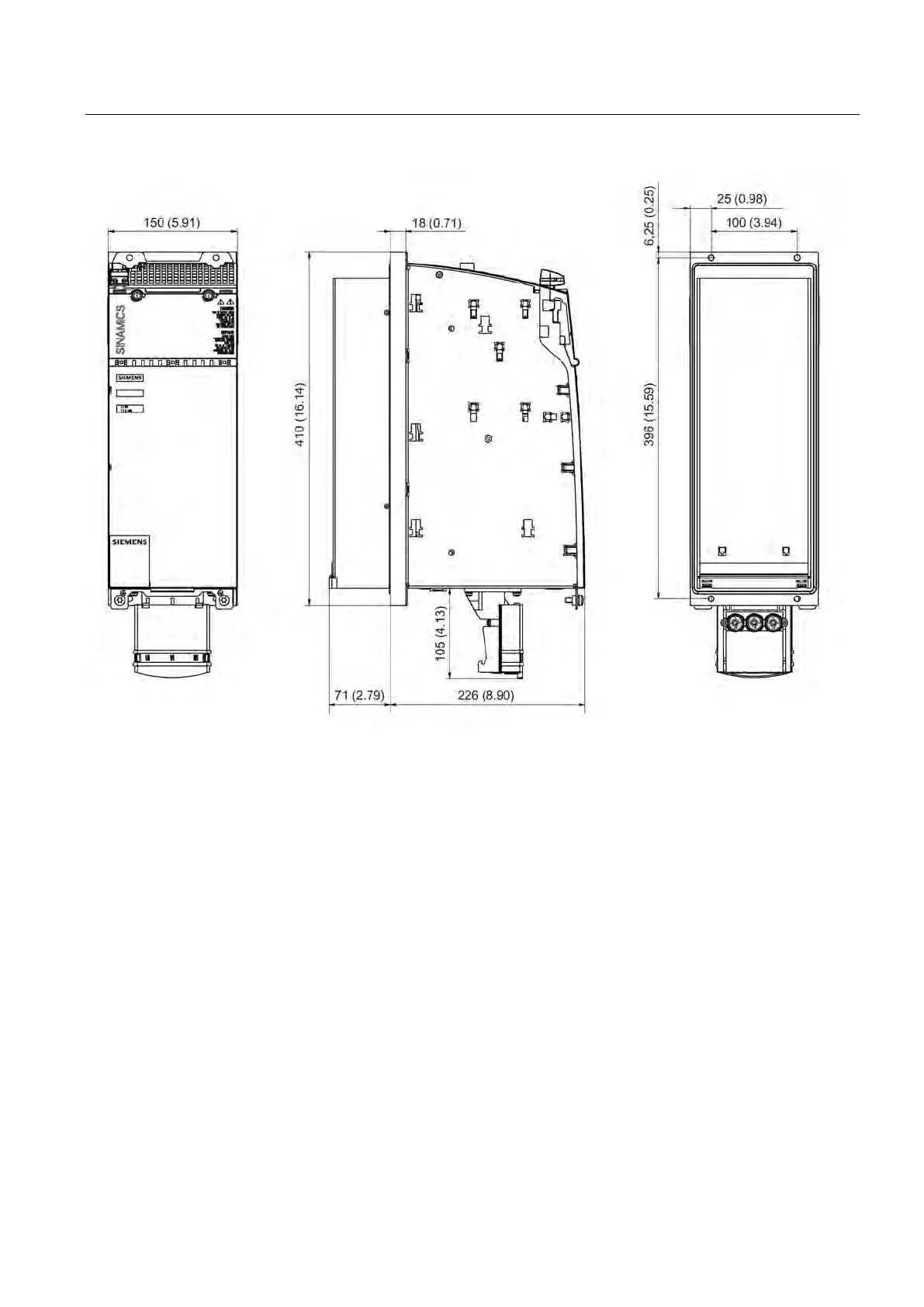

Figure 4-95 Dimension drawing of 36 kW Smart Line Module with external air cooling, all dimensions in mm and (inches)
