Line Modules Booksize
4.10 Smart Line Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
339
External heat sink (air or liquid)

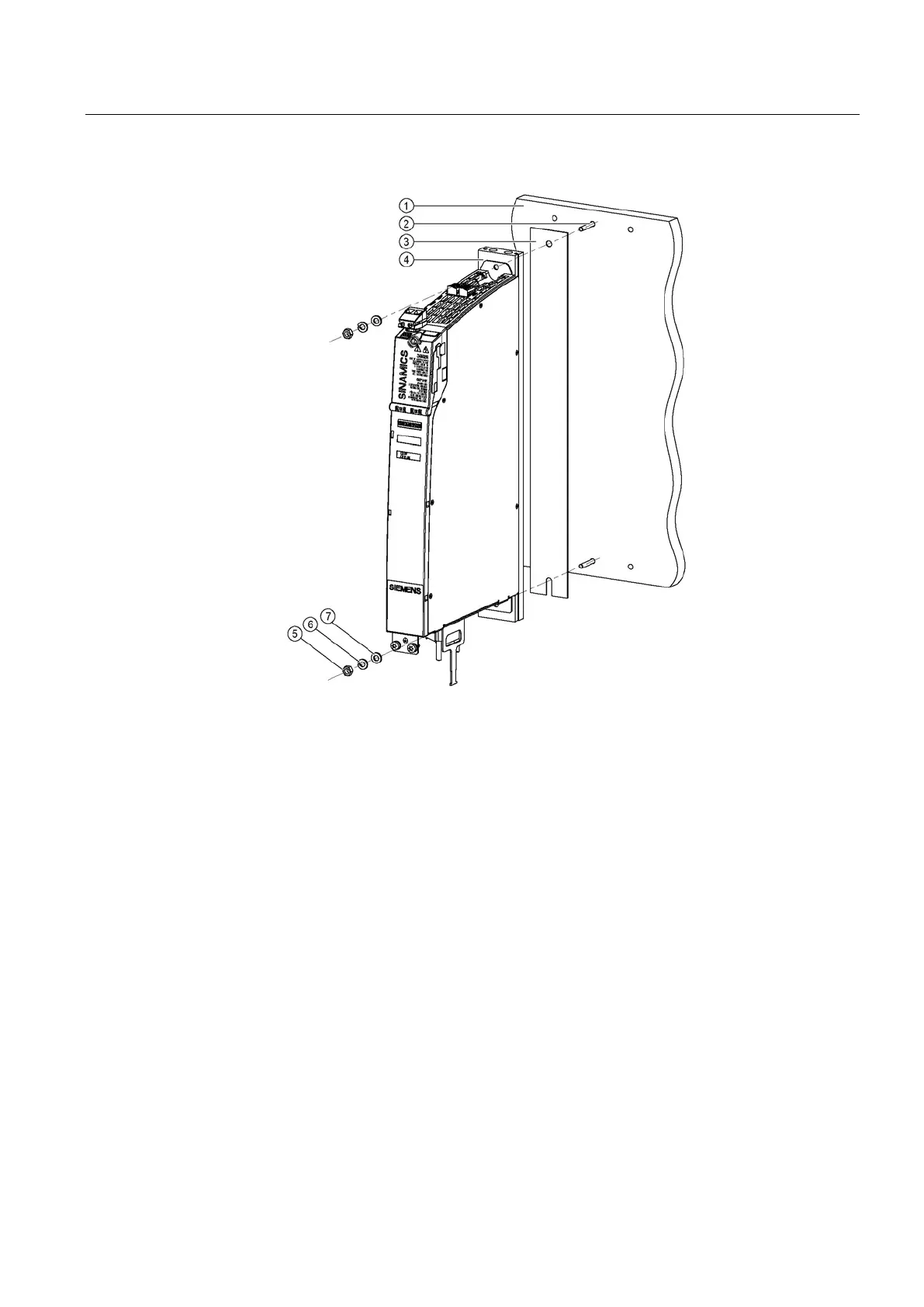

Figure 4-108 Mounting a Smart Line Module with cold plate on an external heat sink, using a 5 kW
Smart Line Module as an example
● Firstly, only tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts.
Tightening torque: 10 Nm
