Line Modules Booksize Compact
5.1 Smart Line Modules Booksize Compact
Booksize Power Units
358 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Mounting a Smart Line Module Booksize Compact on a cold plate

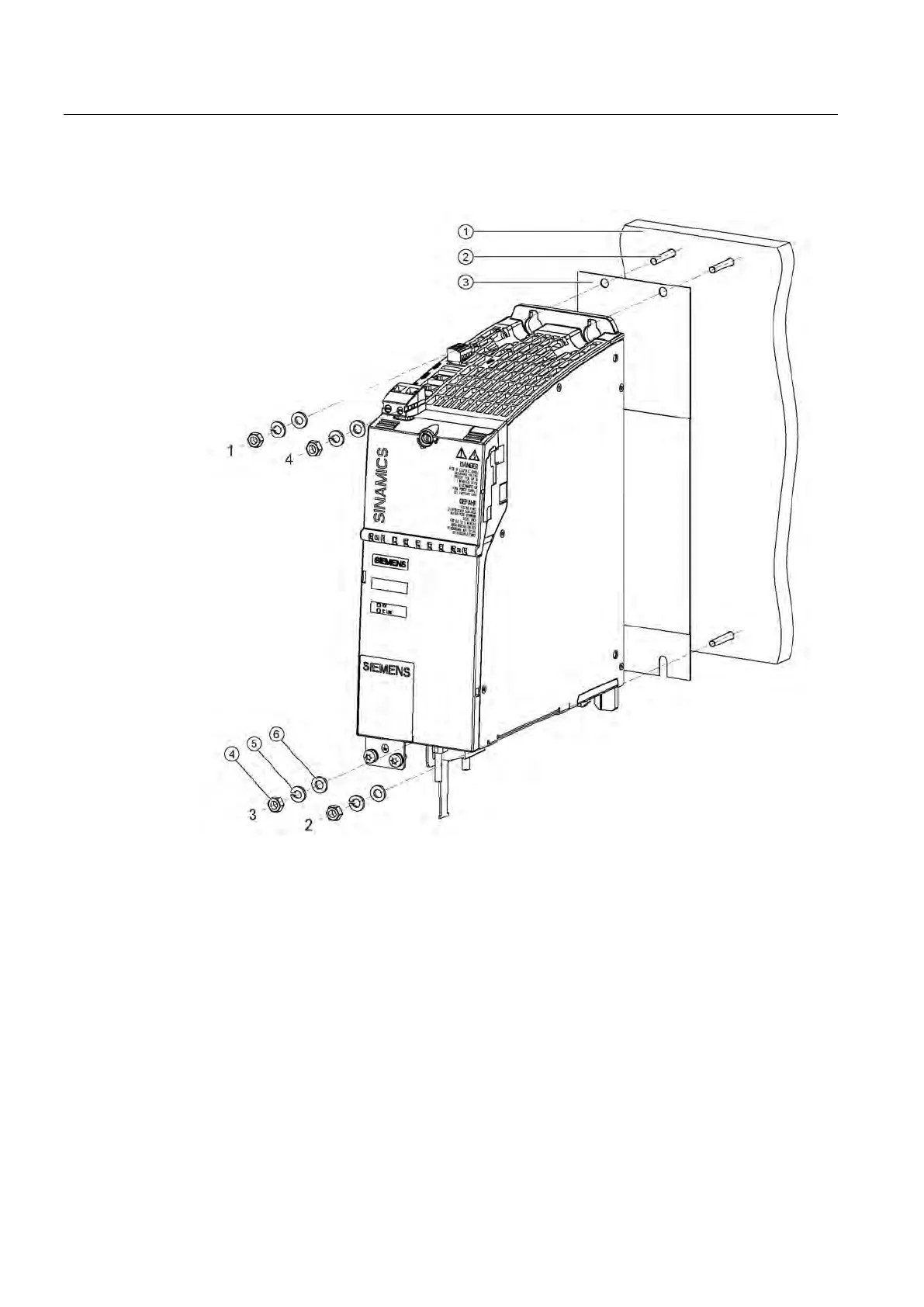

Figure 5-5 Mounting a Smart Line Module Booksize Compact on a cold plate
:
● Firstly, only tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts in the specified sequence 1 to 4.
Tightening torque: 10 Nm
