Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
403

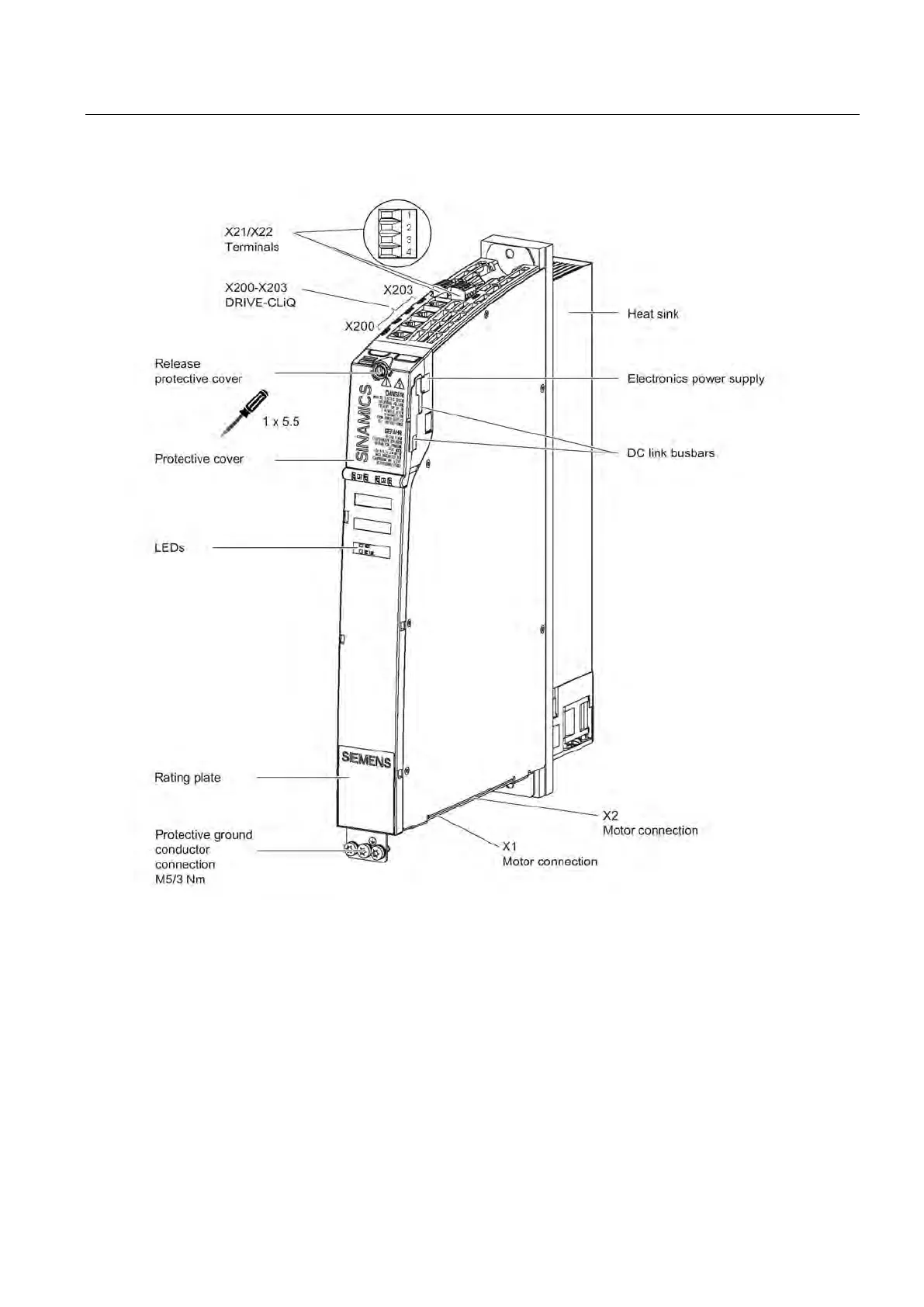

Figure 6-35 Interface overview, Double Motor Module Booksize with external air cooling (example: 2 x 5 A)
