Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
421
Air inlet - filter with filter fan
To comply with degree of protection IP54, the surfaces
between the mounting plate and the cabinet strip must
be sealed all round. (for example, sealant Terostat-91 from the Teroson company)

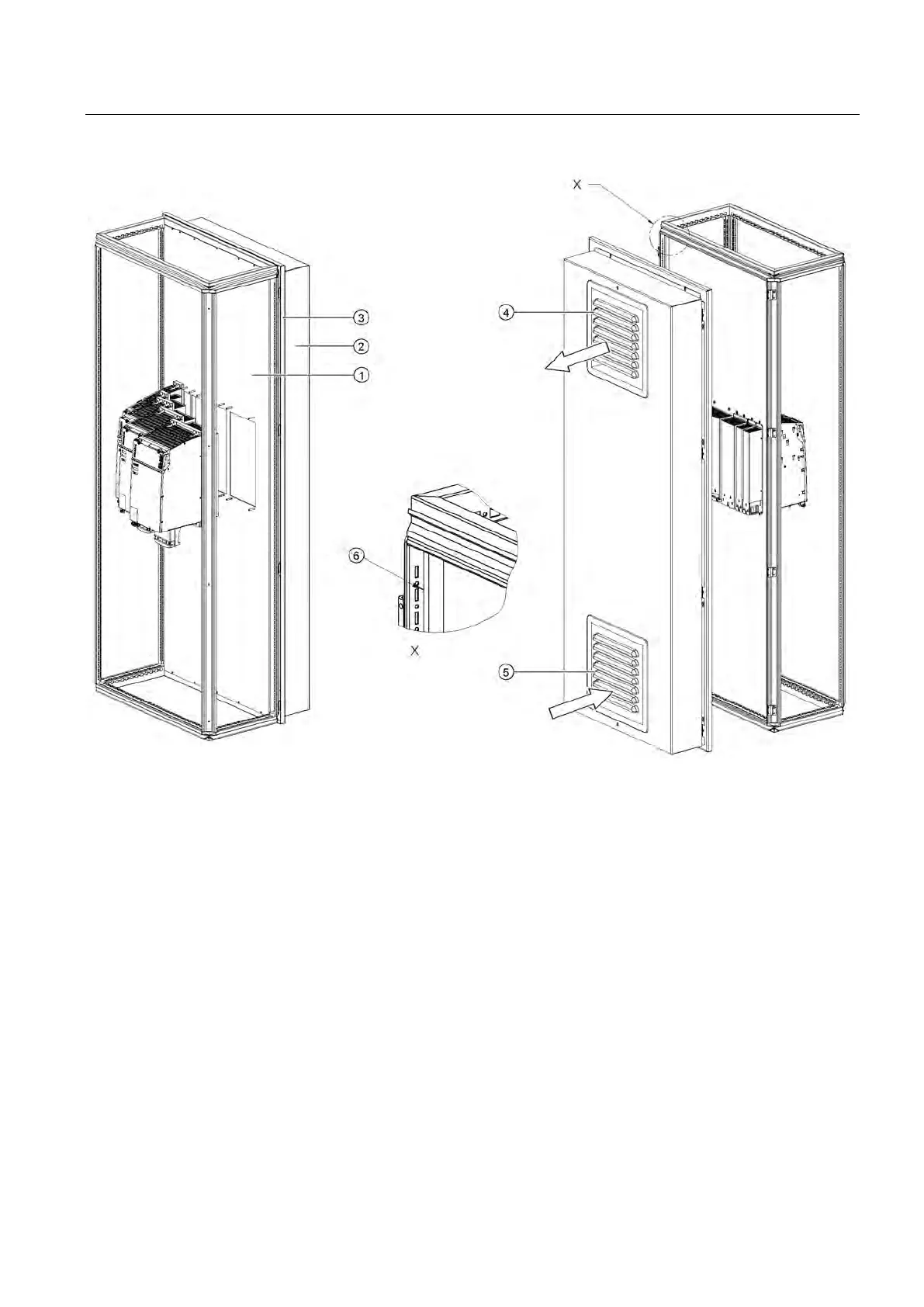

Figure 6-47 Example 1: mounting in the cabinet with mounting plate
