Motor Modules Booksize
6.3 Motor Module with external air cooling
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
437

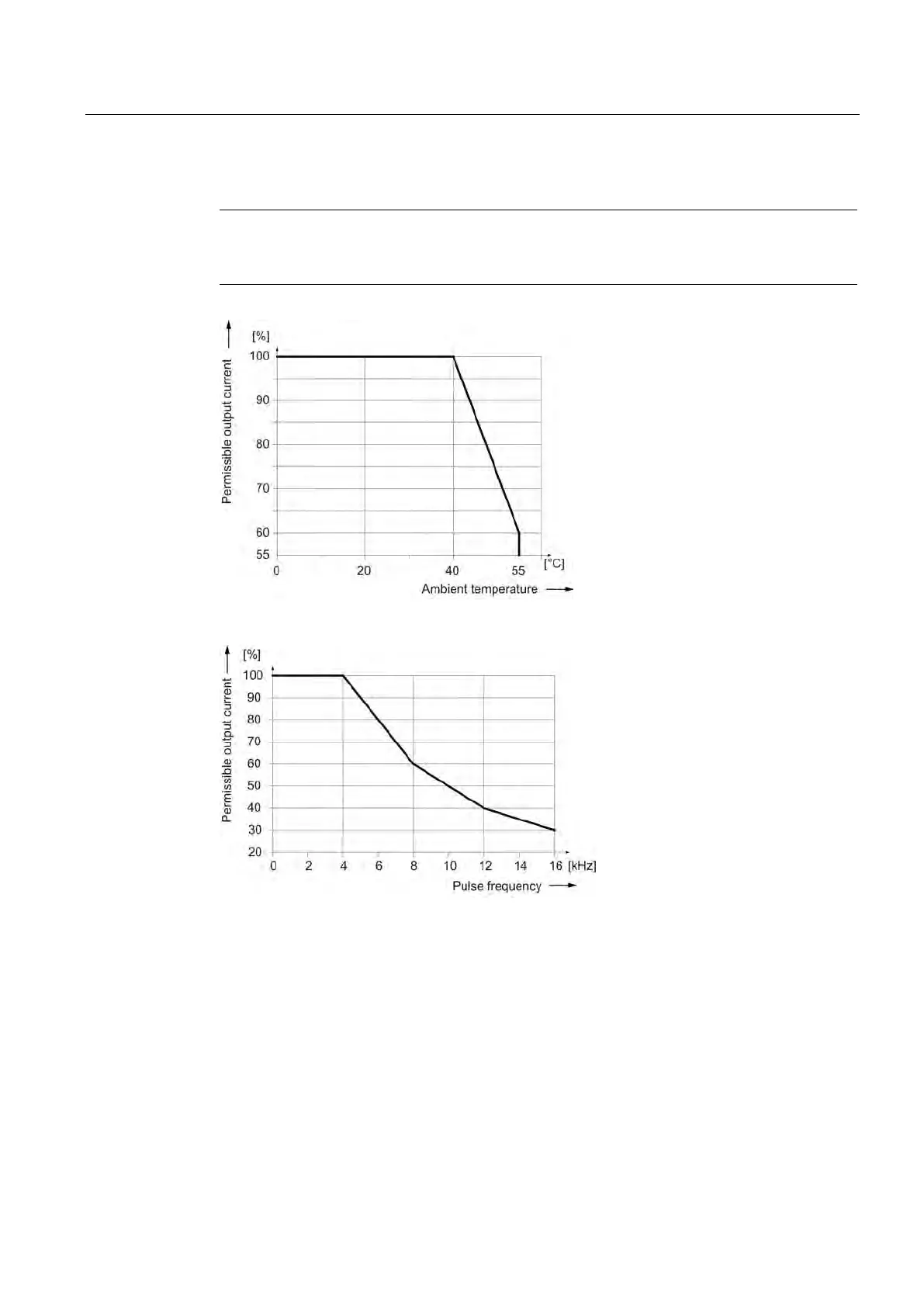

Derating characteristics for Motor Modules Booksize with 300% overload
Note
For additional information, see Chapter
Derating as a function of the installation altitude and
(Page 47).
Figure 6-67 Output current as a function of the ambient temperature
Figure 6-68 Output current as a function of the pulse frequency
