6.4 Motor Modules with cold plate
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
455
Mounting
①
External heat sink (air or liquid)
②
M6 studs
③
Heat-conducting foil
④
Cold plate
⑤
Washer
⑥
Spring washer
⑦
M6 nut

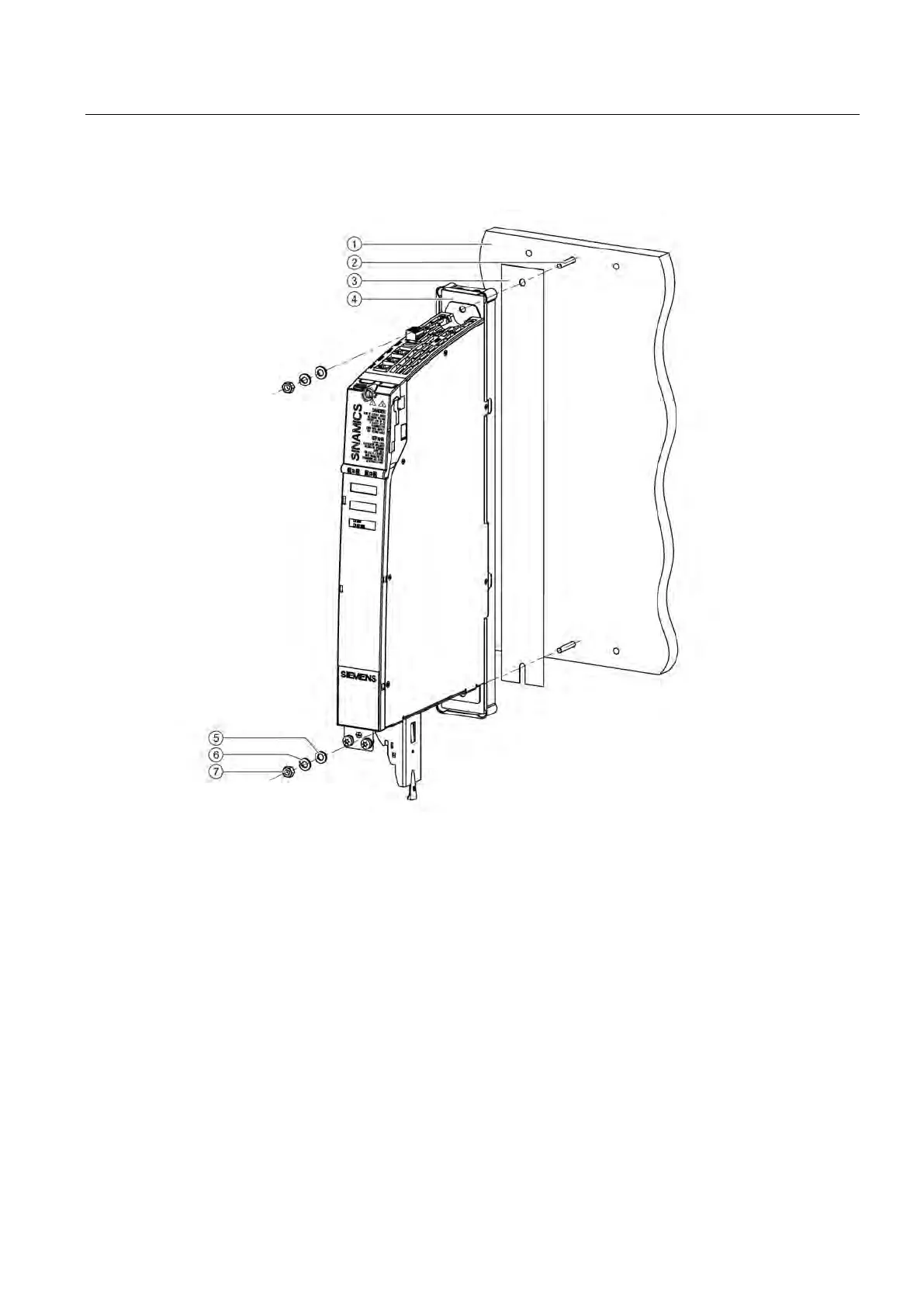

Figure 6-79 Mounting a Motor Module with cold plate on an external heat sink (example: 3 A Motor Module)
Tightening torques
:
● Firstly, tighten the nuts by hand.
Tightening torque: 0.5 Nm
● Then tighten the nuts.
Tightening torque: 10 Nm
