Motor Modules Booksize
6.4 Motor Modules with cold plate
Booksize Power Units
462 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

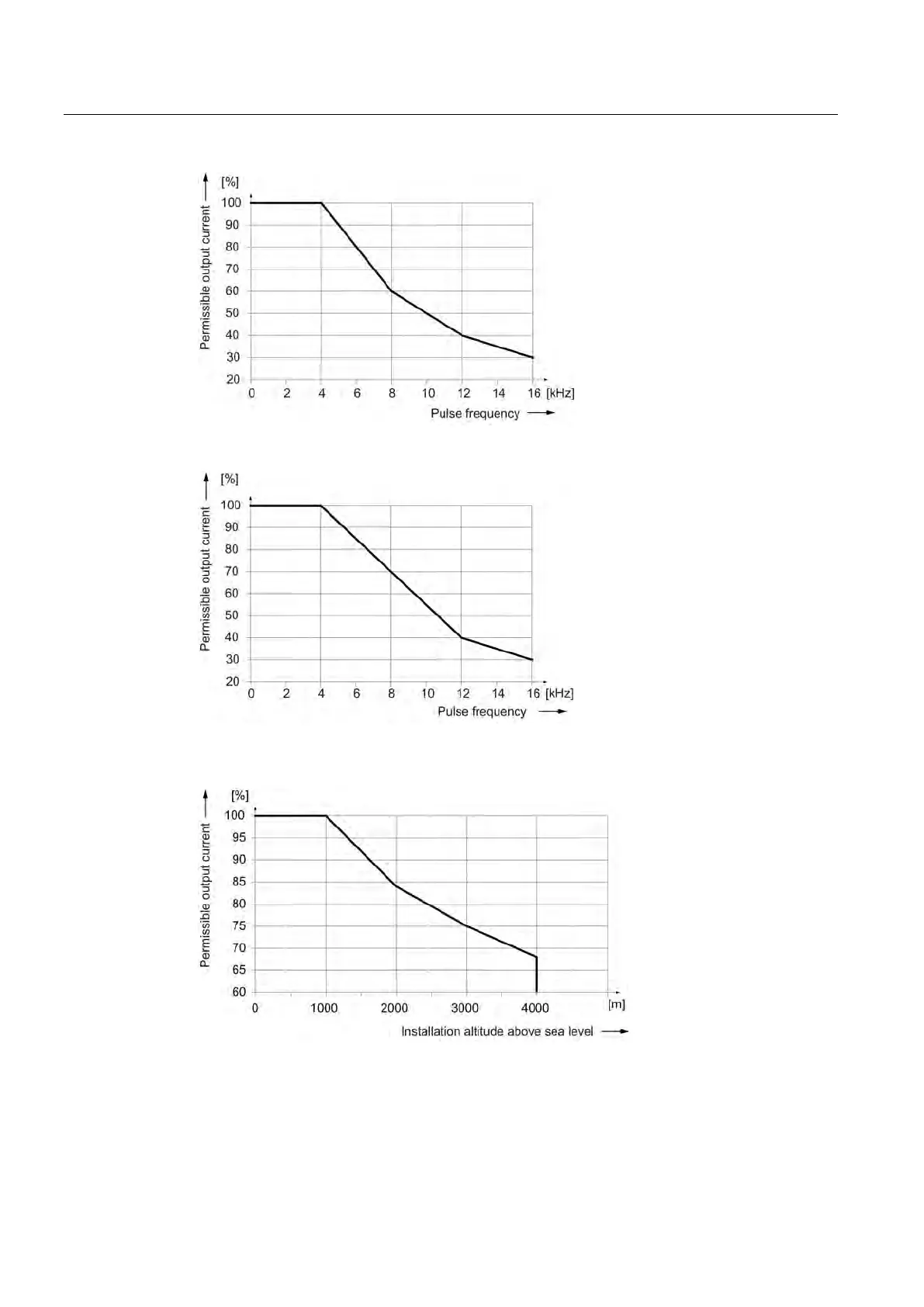

Figure 6-87 Output current as a function of the pulse frequency
Figure 6-88 Output current as a function of the pulse frequency for 200 A Motor Modules
(applies from order number 6SL312x-1TE32-0AA4)
Figure 6-89 Output current as a function of the installation altitude
