Motor Modules Booksize
6.4 Motor Modules with cold plate
Booksize Power Units
470 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
Derating characteristics for Motor Modules Booksize with 300% overload
Note
For additional informatio
n, see Chapter Derating as a function of the installation altitude and
(Page 47).

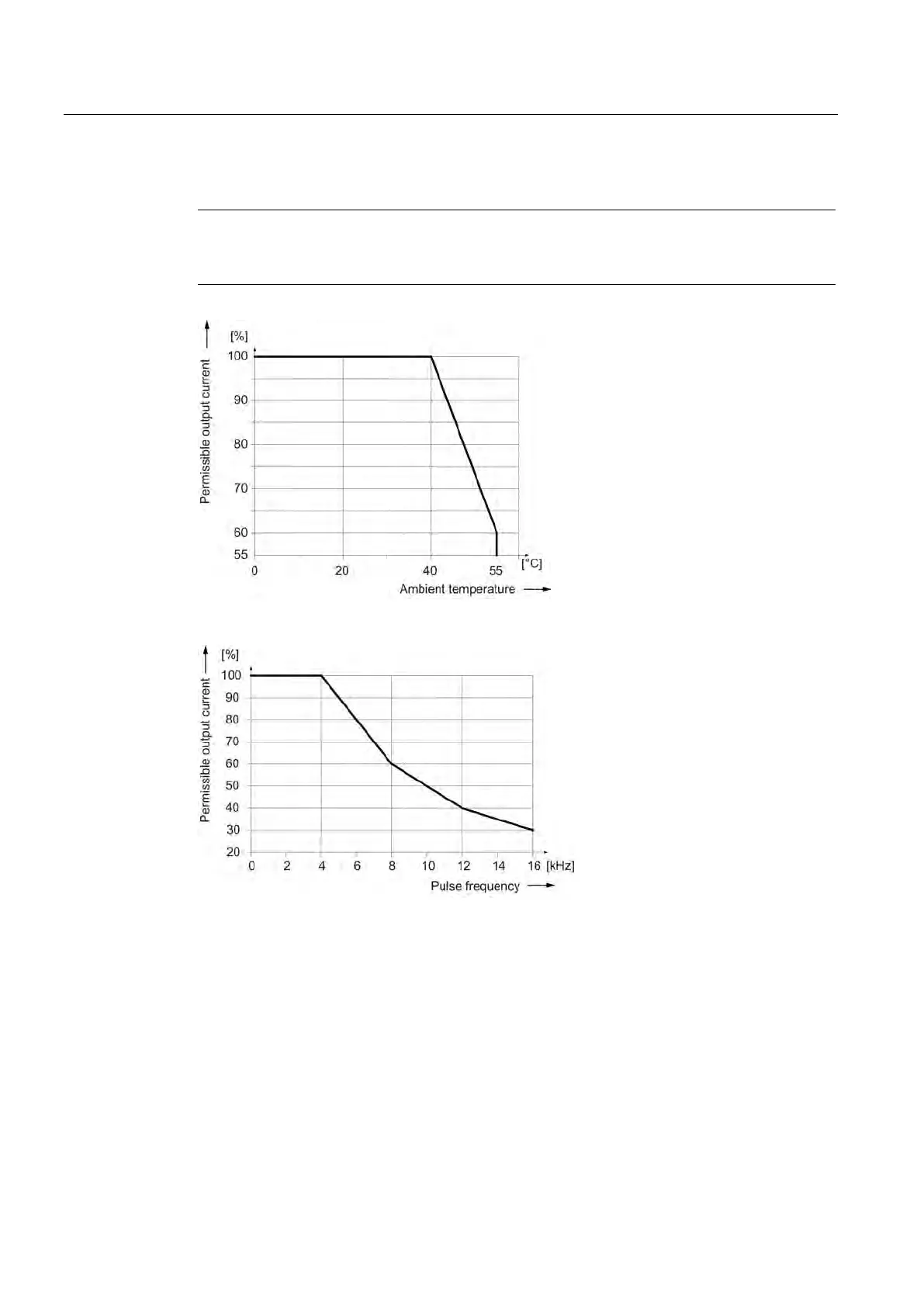

Figure 6-98 Output current as a function of the ambient temperature
Figure 6-99 Output current as a function of the pulse frequency
