Line connection and line-side power components
3.7 Line filters
Booksize Power Units
74 Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6

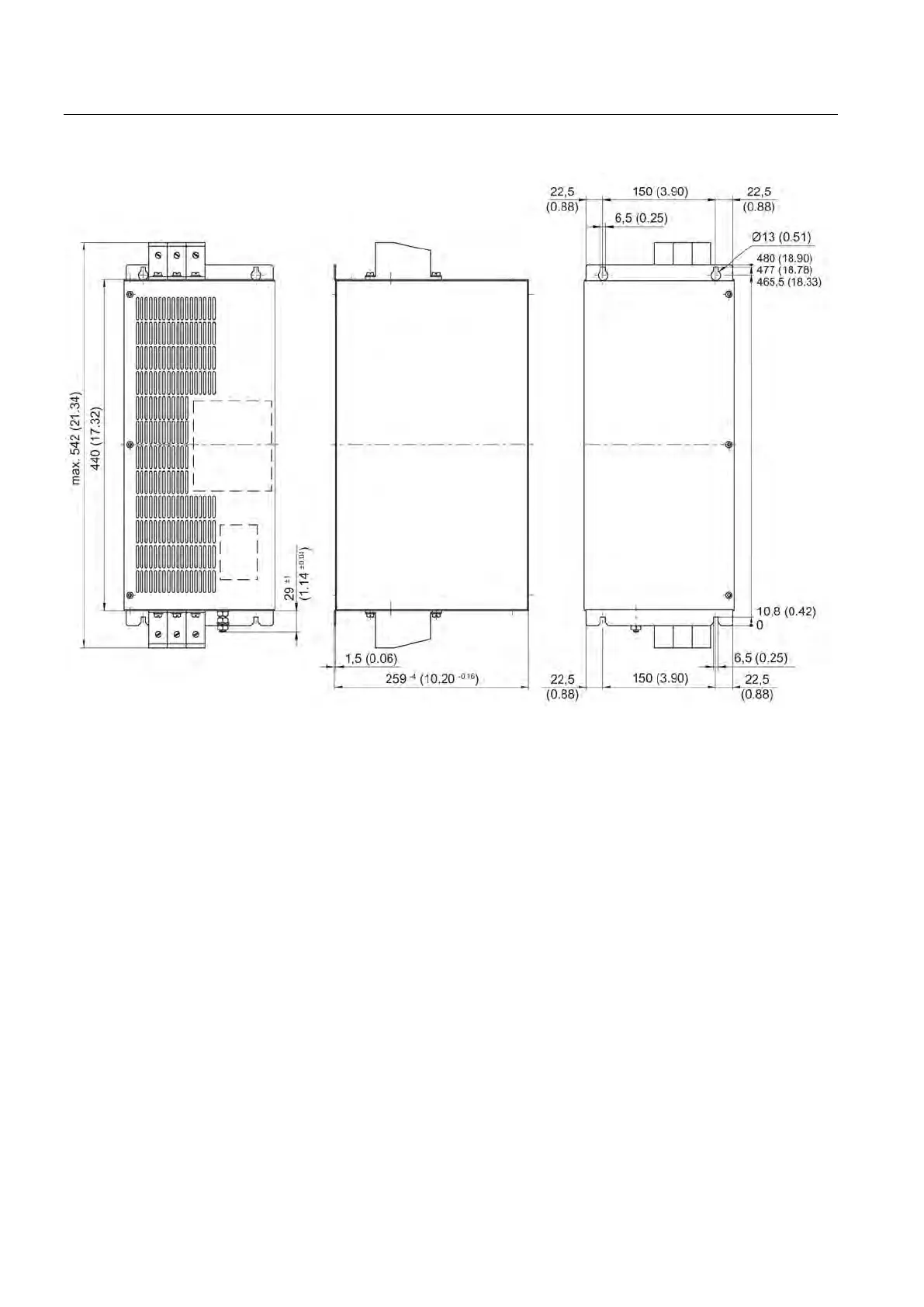

Figure 3-14 Dimension drawing of Wideband Line Filter 80 kW for Active Lines Modules, all dimensions in mm and
(inches)
