Line connection and line-side power components
3.7 Line filters
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
79

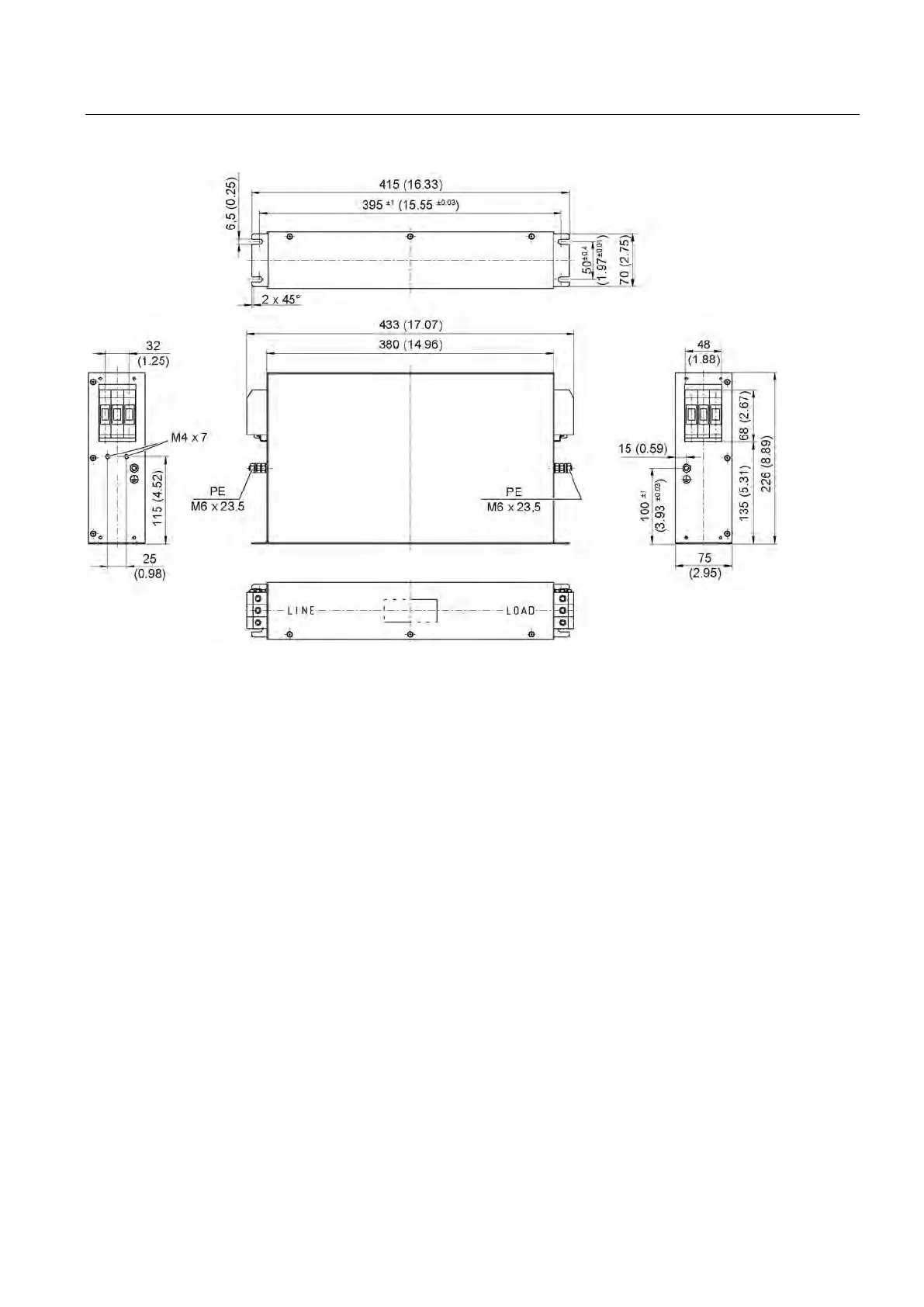

Figure 3-18 Dimension drawing of Basic Line Filter for Basic Line Modules 40 kW, all data in mm and (inches)
