Line connection and line-side power components
3.8 Line reactors
Booksize Power Units
Manual, (GH2), 04/2014, 6SL3097-4AC00-0BP6
91

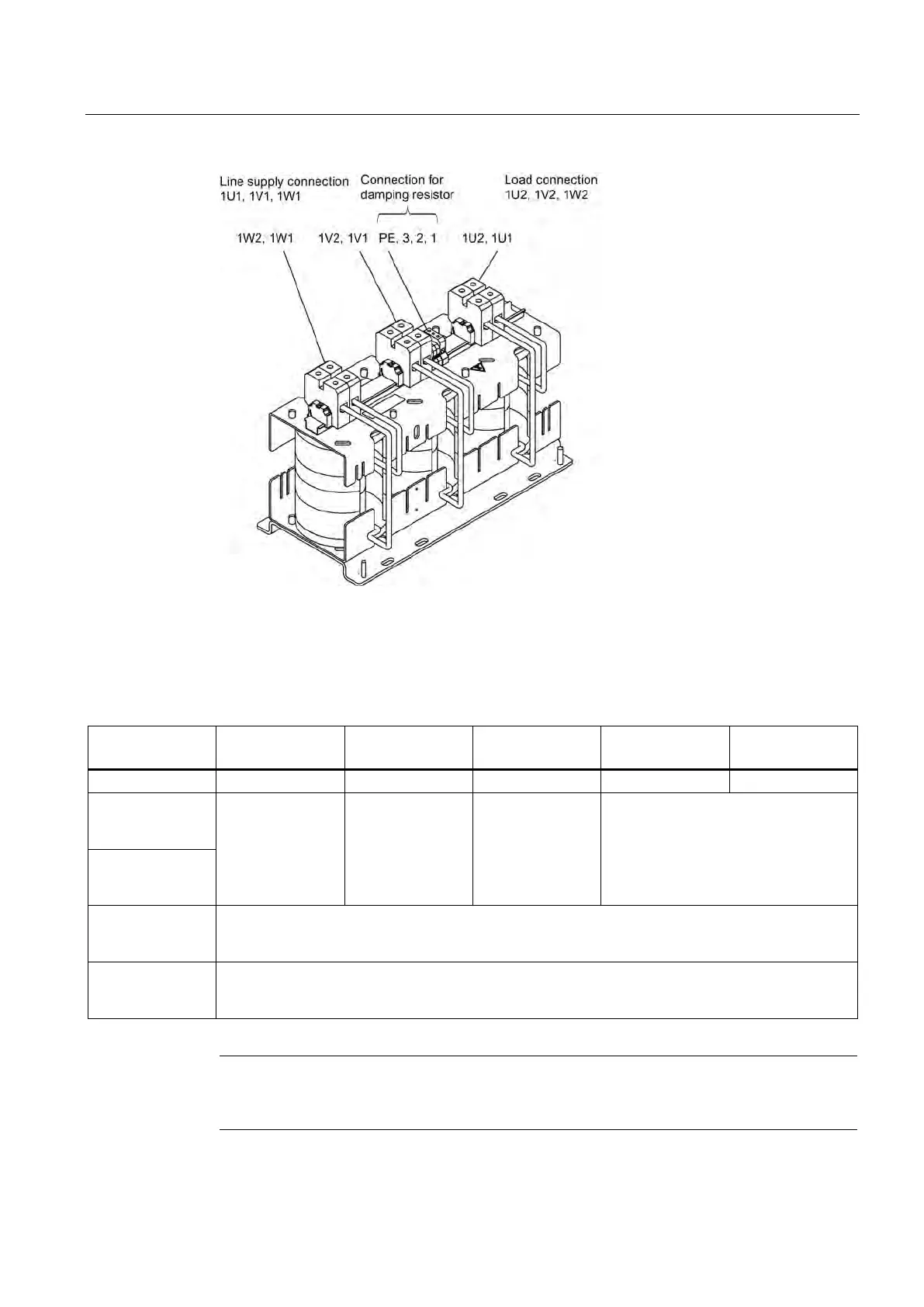

Figure 3-29 Interface overview, HFD line reactor 120 kW
Line/load connection
Table 3- 14 Connection of HFD line reactors
Order number
6SL3000-0DE21-
6AAx
6SL3000-0DE23-
6AAx
6SL3000-0DE25-
5AAx
6SL3000-0DE28-
0AAx
6SL3000-0DE31-
2AAx
Power [kW]
16
36
55
80
120
Line supply
connection
1U1, 1V1, 1W1
Screw terminal
16 mm
2
/1.2 Nm
Screw terminal
35 mm
2
/2.5 Nm
Screw terminal
70 mm
2
6 … 10 Nm
Type: Spring-loaded terminal 4
(Page 754)
Max. cross-section that can be
connected:
95 mm
2
Load connection
1U2, 1V2, 1W2
PE connection
Screw terminal
16 mm
2
/1.2 Nm
Damping resistor
connection
1, 2, 3 PE
Screw terminal
16 mm
2
/1.2 Nm
Note
Data relating to the permissible tightening torques can also be found on the label showing
the termin
al layout of the screw terminal for the corresponding HFD line reactor.
