System description
10
Building Technologies A6V10265083_a_en_--
Fire Safety & Security Products 03.2010
3.3 Specified standards and options
EN54-2 Fulfilled
Basic functions x
Options and associated requirements Related FC10 configuration /
connection
Fulfilled
7.8
Output to fire alarm device EN54-1 / C
( Fire alarm devices )
Sounder line 1
Step 5 option 1
Step 4 option 7
x*
7.9.1 Output to fire alarm routing equipment EN54-1 / E
Sounder line 3
Step 5 option 11
x*
7.9.2 Alarm confirmation input from fire alarm routing equipment n/a -
7.10.1 Outputs to fire protection equipment EN54-1 / G
Sounder line 1
Step 5 option 13
x*
7.10.2
Outputs to fire protection equipment
Output type B EN54-1 / G
-
7.10.3 Outputs to fire protection equipment -
7.10.4 Fault monitoring of fire protection equipment -
7.11.1 Delays to outputs V1/V2 timer for alarm organization Step 1 & 2 (timer V1 & V2) x
7.11.2 Switch on /off delays to outputs, V1/V2 timer for alarm organization Key 8 (Manned / unmanned) x
7.12.1
Dependencies on more than one alarm signal
Type A dependency from the same detector, or another in the same
line
Step 6 / option 2 x
7.12.2
Dependencies on more than one alarm signal
Type B dependency cross zoning
Step 11 option 4 x
7.12.3
Dependencies on more than one alarm signal
Type C dependency (option with requirement)
n/a -
7.13 Alarm counter (option with requirement) FCA1002 display unit x
8.3 Fault signals from points (option with requirements)
Zone Led
and LED 9
x
8.4 Total loss of the power supply (option with requirements) n/a -
8.9 Output to fault warning routing equipment according EN54-1 / J
Sounder line 6
Step 5 option 14
x
10 Test condition (option with requirements) Push Key zone x x
11
Standardized input/output interface (option with requirements – see
also Annex G)
n/a -
Remarks:
* the panel provides in the standard 2 monitored control lines and with the FCA1003 control card 4 additional moni-
tored outputs. In step 5 we provide for output the options.

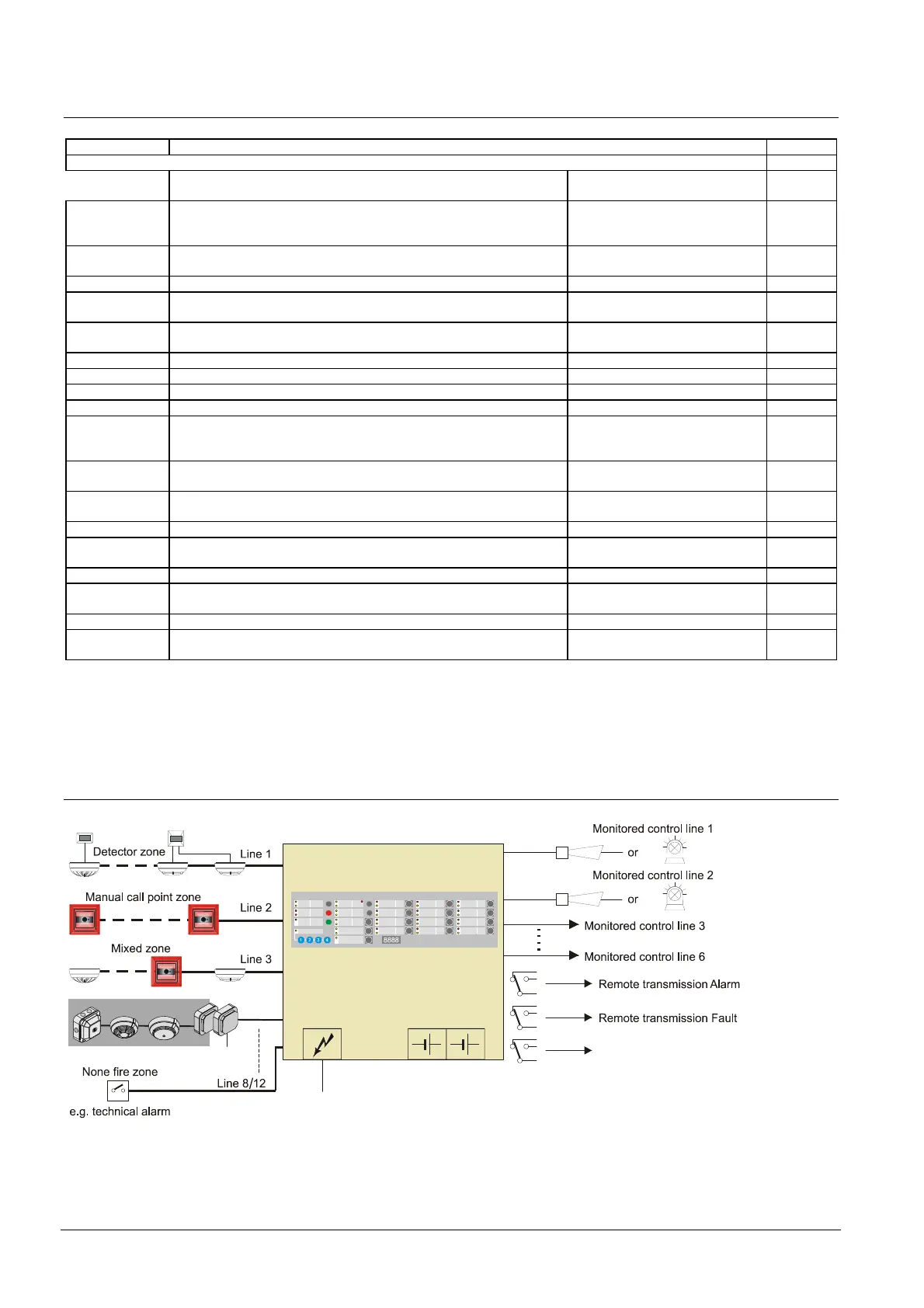

3.4 System overview
EX-area
24 V
DC1192
SB3
Fire controls
max. 6 relays
AC power input
115/230 VAC
