Siemens FC1008-A User Manual

Trouble shooting
44
Building Technologies A6V10265083_a_en_--
Fire Safety & Security Products 03.2010
10 Trouble shooting

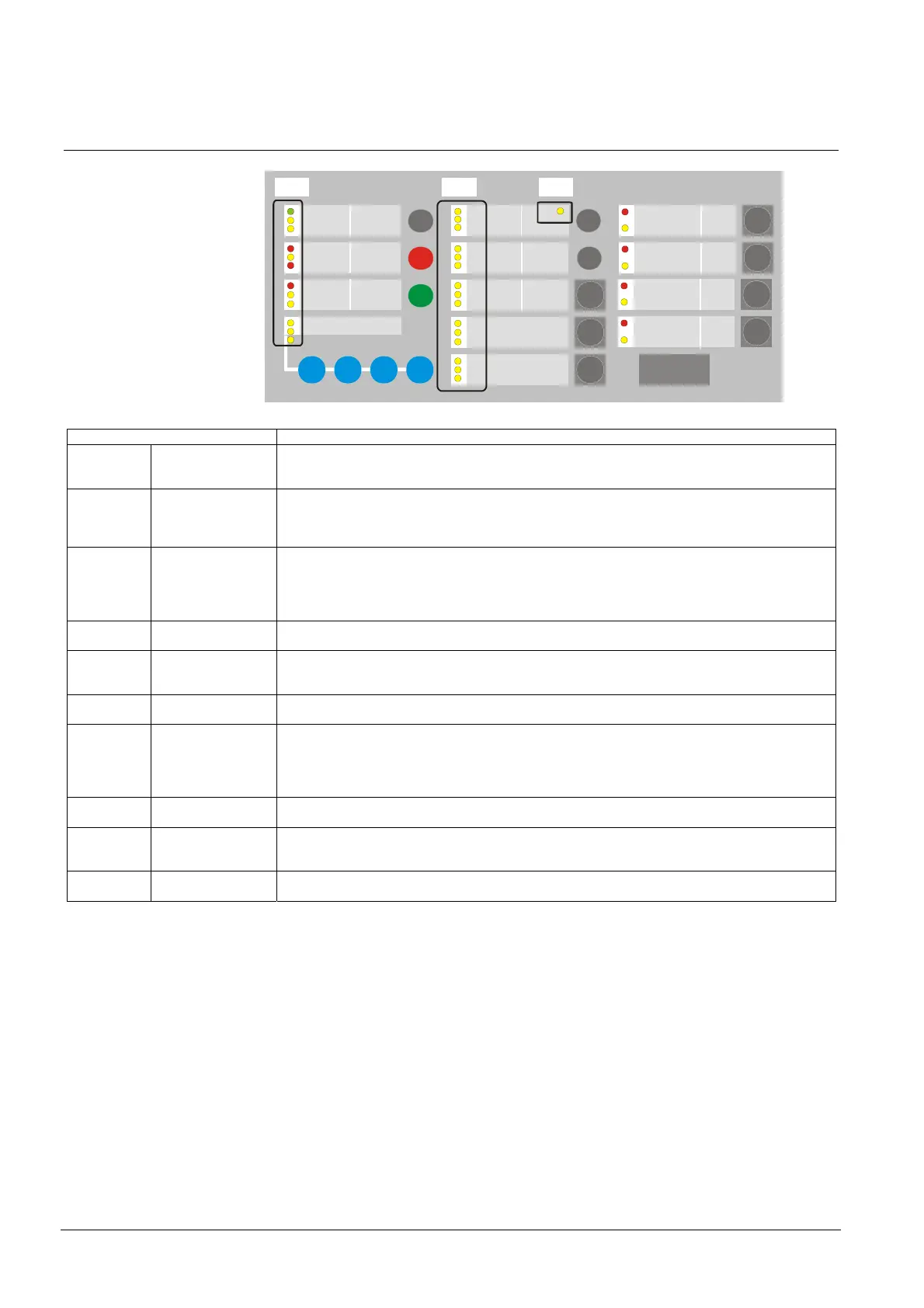

10.1 Interpretation of fault LED flashing
12
3
4
1
2
3
4
5
6
7
8
LED LED LED
9
10
11
12
13
14
15
17 (23)
16
9 9 9 9
Indicator Cause / Action to be taken
LED 2 Fault
flashing fast
There is a fault in the system
 check if there is another fault LED flashing, if not
 check if control input Fault is activated
LED 10 Earth fault
Flashing fast
Any part of the system has a leakage to earth
 Remove one external line (detector line etc.) after the other until the fault disappears, then repair
the defective line
 if no external line has a leakage to earth replace mainboard
LED 11 Power fault
flashing fast
flashing slow
Battery is disconnected or low
 Replace battery
Mains supply is missing (after delay has expired)
 Check internal fuse or external mains breaker
LED 12 System fault
flashing fast
The microcomputer has failed (system not working)
 Switch power off and restart, if fault continues replace mainboard
LED 13 Alarm horn fault
flashing fast
There is a fault in the monitored control lines (horn)
 Check lines for a short circuit or break or missing/defective EOL
 If control card FCA1003 is used, check LEDs DL1 - DL4 to define faulty line
LED 14 Fire controls fault
flashing fast
There is a fault on a monitored control line (programmed in step 5 to option 12 or 13)
 Check line for a short circuit or break or missing/defective EOL
LED 15 RT-Fault
flashing fast
Control input Fault RT is active, or if programmable control input with option 1 is active (Fault re-
mote transmission device)
 Check remote transmission device
There is a fault on a monitored control line (programmed in step 5 to option 14)
 Check line for a short circuit or break or missing/defective EOL
LED 23 RT-Alarm
flashing fast
There is a fault on a monitored control line (programmed in step 5 to option 11)
 Check line for a short circuit or break or missing/defective EOL
LED zone x Yellow zone LED
flashing fast
There is a fault in zone number x
 Check whether any detector head is removed
 Check line for short circuit or break or missing/defective EOL
Display Indicates 88.88 Clock not set (with new system start up or after power down)
 Set date and time
