7.2 Testing peripheral devices

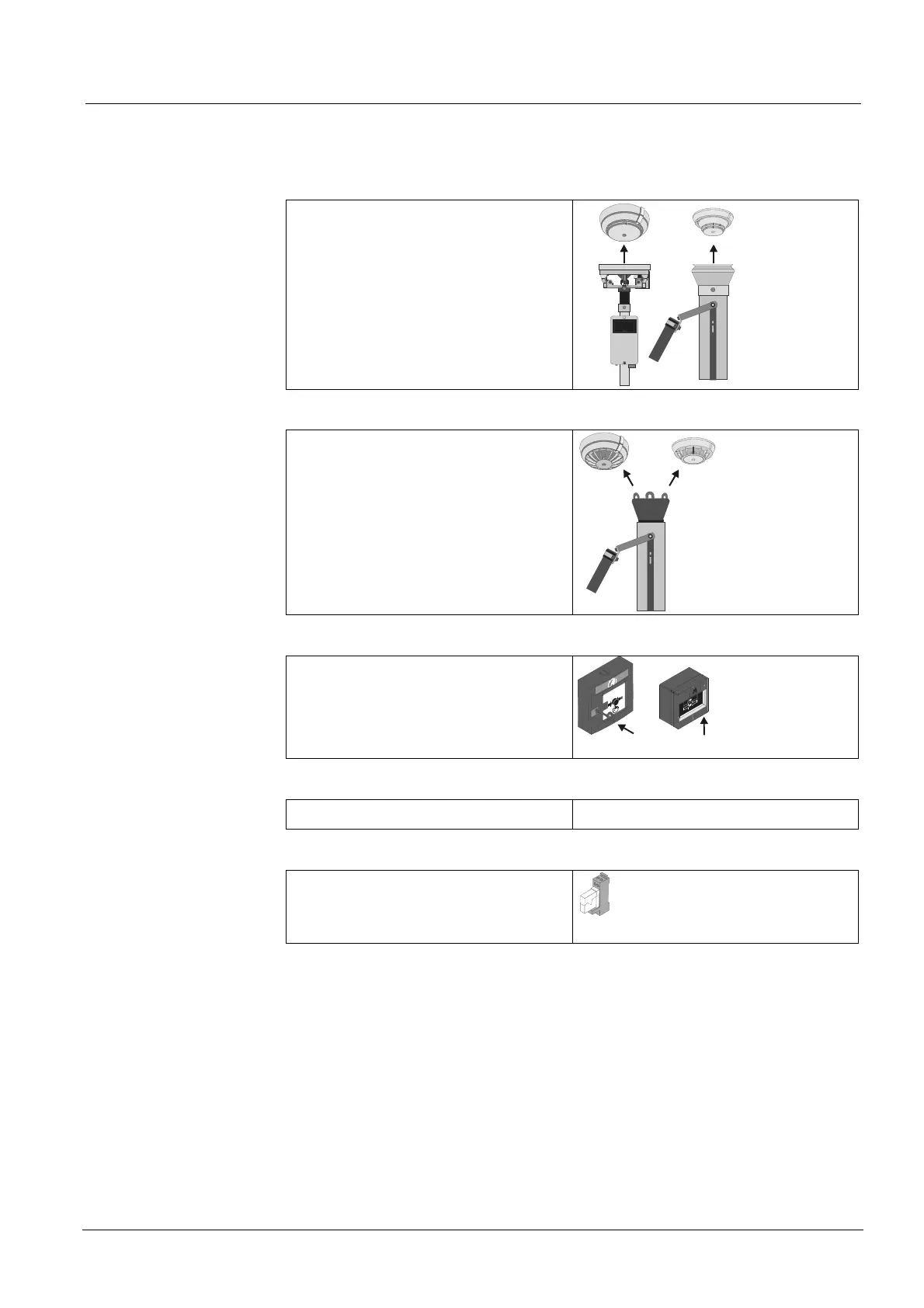

Procedure
Testing smoke detectors with DZ1193 or RE6
1. Set zone to mode detector test
2. Place testing unit on detector head
3. Wait until LED at detector head is on
4. Remove testing unit
- automatic Reset of test alarm after 10 sec.
5. Set zone to mode normal operation
Testing heat detectors RE6T
1. Set zone to mode detector test
2. Place testing unit on detector head and turn on
heater
3. Wait until LED at detector head is on
4. Remove testing unit
– automatic Reset of test alarm after 10 sec.
5. Set zone to mode normal operation
Testing manual call points
1. Set zone to mode detector test
2. Depending on type of call point, insert test key
or open cover to activate
3. Wait until LED is on
4. Remove test key or close door
- automatic Reset of test alarm after 10 sec.
5. Set zone to mode normal operation
Testing horn control lines
Initiate horn test with key at the control unit
Check whether the sound intensity is correct
Testing fire controls
Make sure that the activation causes no dam-
age to any building equipment
Activate each fire control by initiating a real
alarm and check whether the fire control functions
are correct
