Function and design
17
Building Technologies A6V10265083_a_en_--
Fire Safety & Security Products 03.2010

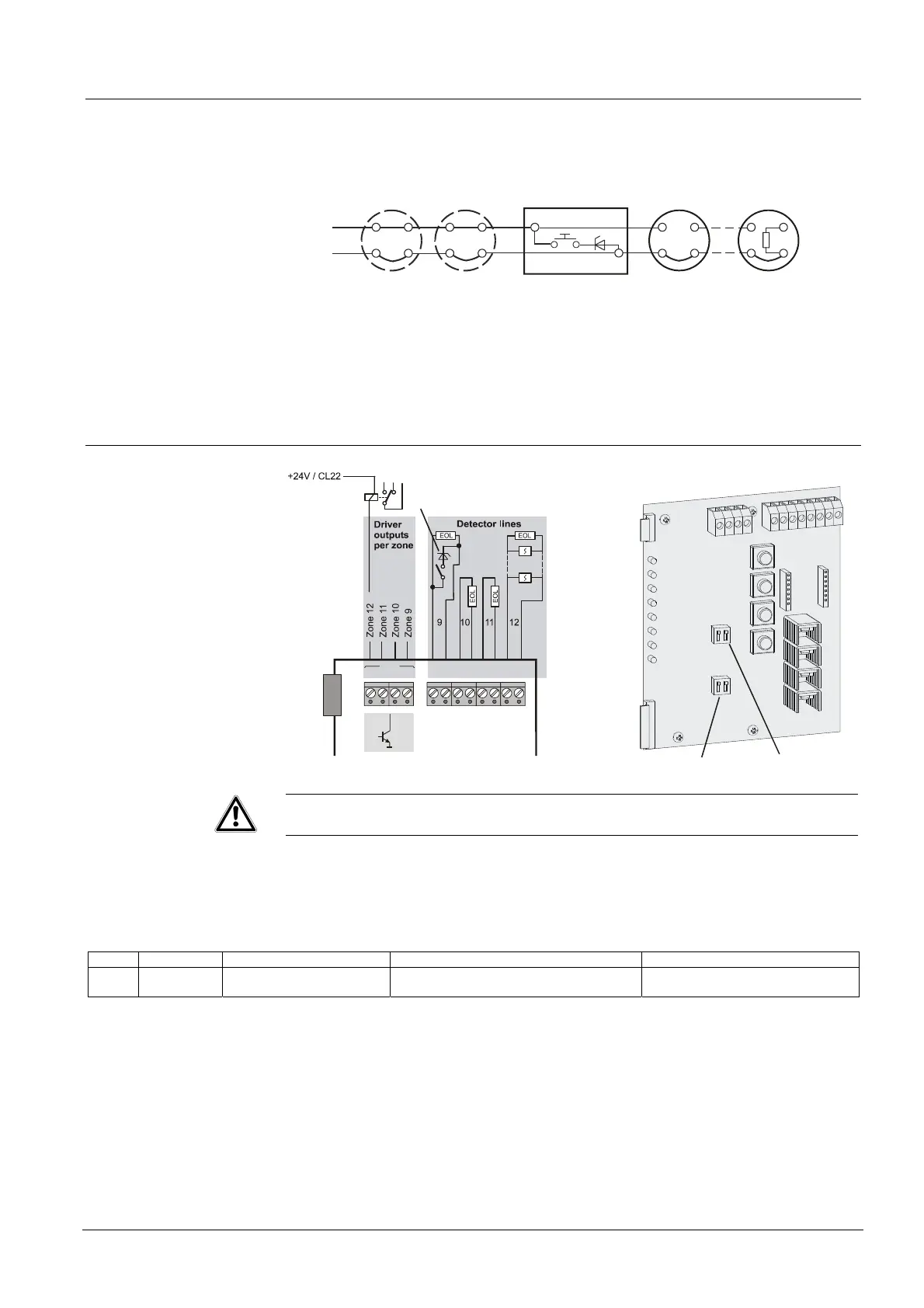

5.1.4 Manual call point detection
It is possible to differentiate whether a detector or a manual call point has initiated
alarm on the detector line. In this case manual call points must be equipped with a
z-diode 5.6V/1W.
+
_
EOL
Detector line
Detectors Manual call point Detectors
Achieved with
option 4 selected on programming step 3 or
option 8 selected on programming step 15
Note: A z-diode in series with a resistor and a LED is not possible for call point de-
tection.
5.1.5 Zone extension module
+
+
+
+
+
+
+
+
_
_
_
_
_
_
_
_
LIN9 LIN10 LIN11 LIN12
12 11 10 9
DRIVER
2
1
ON
ON
PU3
PU4
PU2
PU1
or
Z-diode 5,6V
NOTE
Do not connect driver outputs directly to plus potential!
Outputs may be damaged.
Connections for zone extension
see chapter 5.1.1 Peripheral connections, Mainboard
Settings for detector lines
Pos Ref Function Parameter Remark
1 to 2 PU1 … PU4 Detector line 9 to 12 ON = none current limited (Cerberus)
OFF = current limited (Synova)
Factory set
