Installation
12
Building Technologies A6V10265083_a_en_--
Fire Safety & Security Products 03.2010
4 Installation

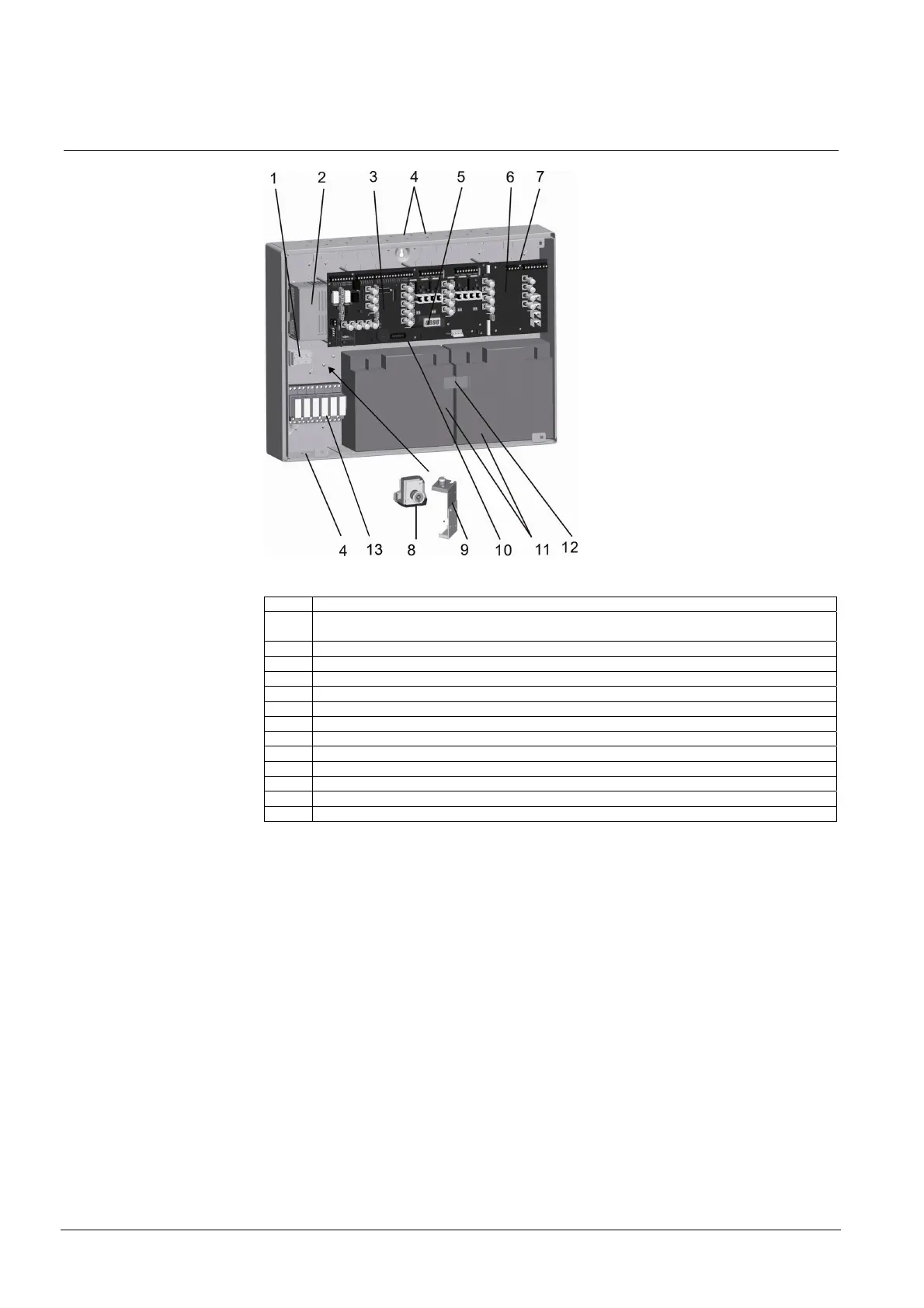

4.1 Assembly
Pos Components
1 Mains connection and circuit breaker (fuse), factory mounted.
230 VAC main connection from below (recomended)
2 Power supply (70 W)
3 Mainboard
4 Nock-outs for cable entries 20 mm; top 17, bottom 3
5 Display module (option)
6 Line extension card, FC1012 only
7 Control line extension card (optional) under Line extension card
8 Key switch Nordic (variant Nordic only)
9 Key switch set (option)
10 Patch work PCBA
11 Batteries
12 Battery holders
13 Relays Z3B171
