5 Function and design

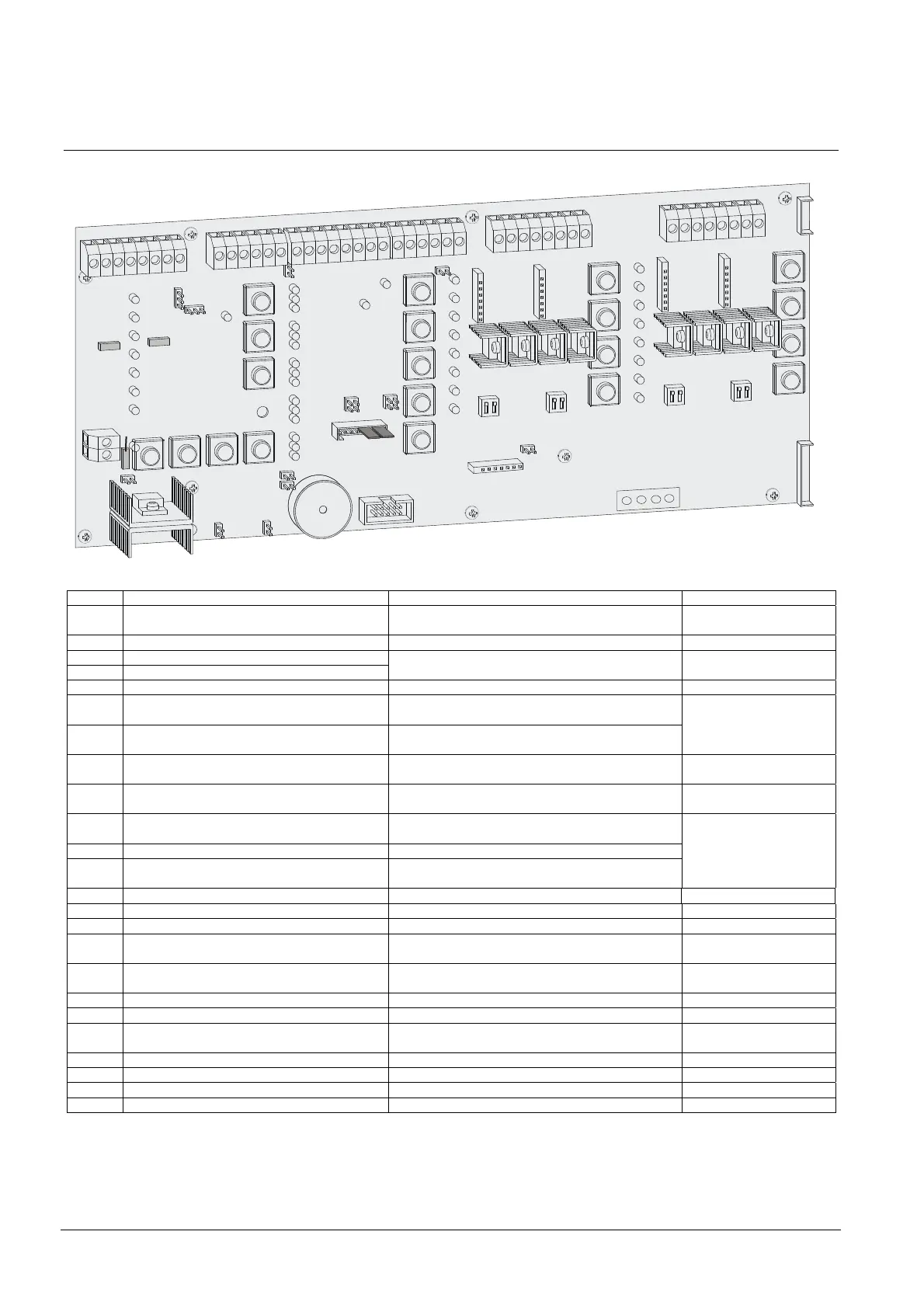

5.1 Mainboard hardware settings
PU11
1
3
PU10
1
3
PU15
PU14
PU13
PU12
CN26
1
8
PU9
PU18
PU17
PU16
PU19
CN10
CN9
ON
ON
ON
ON
CN11
CN14
PU20
PU7
PU6
PU5
PU1
PU2
PU3
PU4
PU8
PU26
PU25
CL23 CL24
CN3/4
CN1/2
CN5/6
CN7/8
F1
F4
F2
Ref Function Parameter Remark
PU1 …
PU8
Detector line 1 to 8 ON = none current limited (Cerberus)
OFF = current limited (Synova)
factory-set = ON
PU9 not used must be ON factory-set
PU10 Contact RT-Fault
PU11 Contact RT-Alarm
Pos. 1-2 = NC Pos. 2-3 = NO set as required
PU12 Fabrication must be OFF
PU13 8 or 12 zones ON = 12 zones
OFF = 8 zones
PU14 Line card FCA1007-B
(support diode bases BS5839Pt1)
ON = FCA1007-B used
OFF = FCA1007-B not used
factory-set 1)
PU15 Control line extension card
ON = used
OFF = not used
factory-set = OFF
PU16 To provide temporary operating access
level 2 or to connect key switch
ON = operating access level 2 permanent provided
OFF = operating access level 2 via password only
for commissioning only
PU17 Earth fault detection ON = enabled
OFF = disabled
PU18 Silence/Resound sounders must be ON
PU19 Buzzer ON = enabled
OFF = disabled (for commissioning only)
factory-set = ON
PU20 not used must be OFF factory-set = OFF
PU25 not used must be OFF
PU26 not used must be ON factory-set = ON
CL23
CL24
Connector for RS485 interface not useable
CN1…
CN8
Connector for line card FCA1007-B line 1 … 8 line card GB factory-equipped with FC10xx-B
CN9 Connector for display module
CN10 Connector for control card
CN11
CN14
Connectors for line extension card (9 - 12)
CN26 Fabrication / Firmware Pos. 1-2 and 3-4 = must be ON
F1 Fuse control line 1 0.5 AT
F2 Fuse control line 2 0.5 AT
F4 Fuse out 24 VDC 0.5 AT
1) depending on type of control unit
