Siemens FC1008-A - Connection to Fault Information According EN54-2 Output J EN54-1

Function and design
19
Building Technologies A6V10265083_a_en_--
Fire Safety & Security Products 03.2010

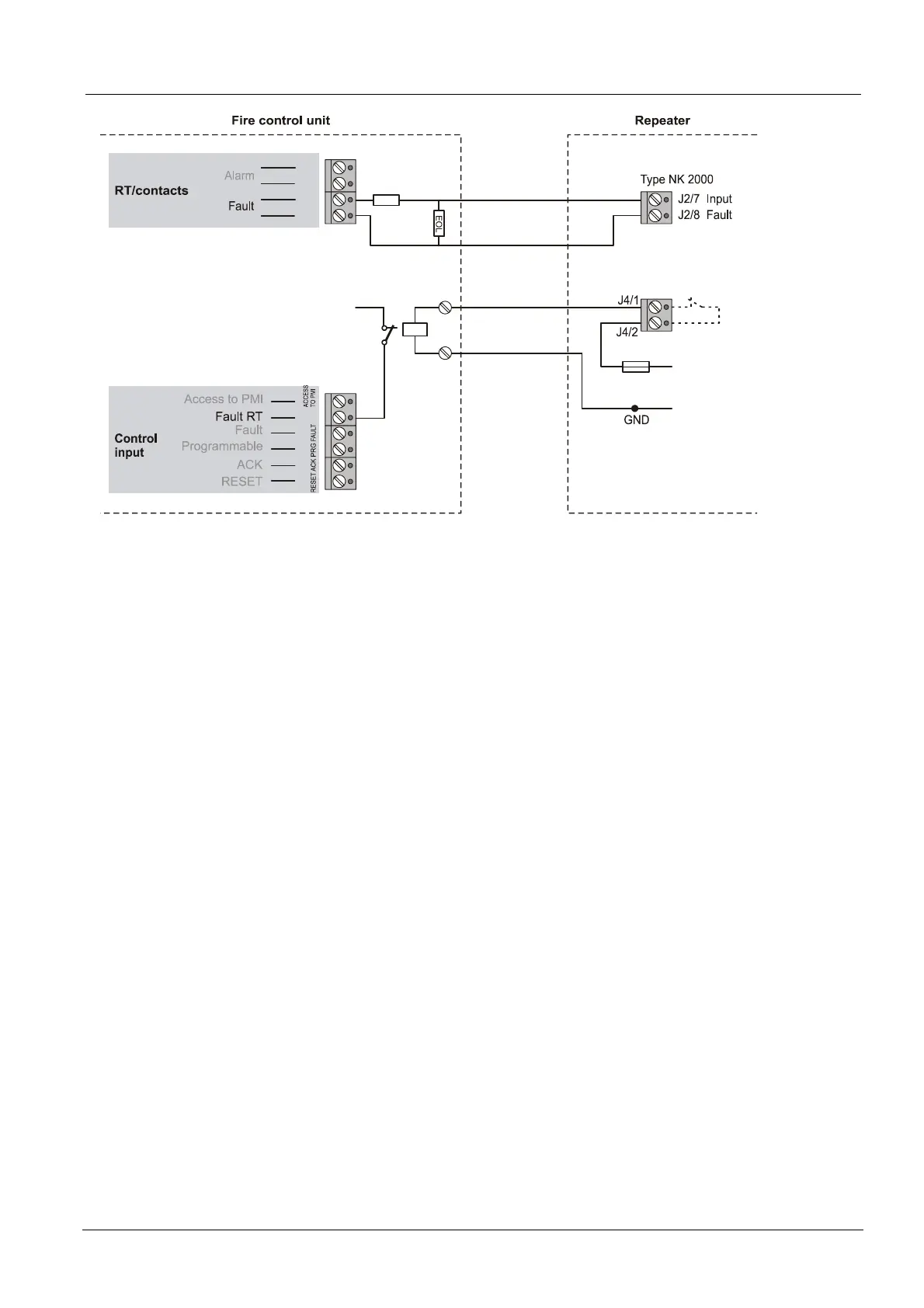

5.1.7 Connection to fault information according EN54-2 output J EN54-1
FAULT RT ALARM RT
(
+ +
)
680 Ω
10 kΩ
12 V
FAULT
RT
100 mA/T
(+ +)
(– –)
2)
1)
1) Extra relays 12 VDC, order to be done locally assembly place
see page 12 pos. 14
2)
Extra fuse in a safety housing, order to be done locally 100 mA/T
