Connection of the Components
5.5 DRIVE-CLiQ Topologies
Guide for the SINUMERIK 840D sl machine configuring
5-40 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
● Once an NX10/15 has been connected and configured, you cannot simply insert it into a
different DRIVE-CLiQ port, as the addresses of the integrated drives are set permanently
from the point of view of the PLC. The following table illustrates this relation:
Table 5-17 NX10/15 PROFIBUS addresses
DRIVE-CLiQ port Drive PROFIBUS addresses
X105 15
X104 14
X103 13
X102 12
X101 11
X100 10

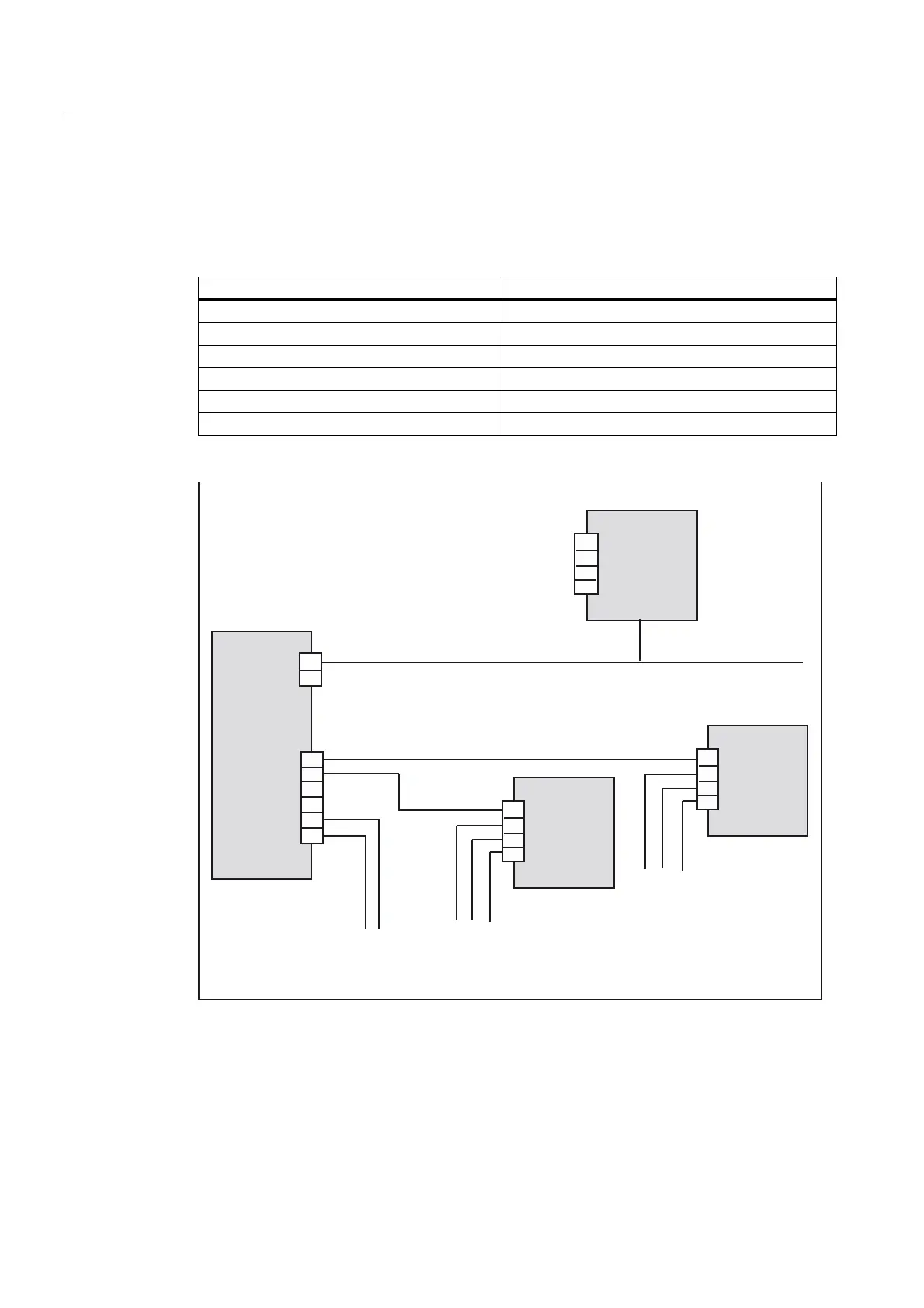

The following figure shows a sample topology:
([WHUQDO352),%86'3'3
(7
1&8
1;
1;
6XEWRSRORJ\
1;
6XEWRSRORJ\
1;
'3DGGUHVV
'3DGGUHVV
'5,9(&/L4
FRPSRQHQWVRQ
WKH1&8
;
;
;
;
;
;
;
;
Figure 5-17 NX10/15 topology
