Structure of the drive group
2.2 Layout of the Components
Guide for the SINUMERIK 840D sl machine configuring
2-10 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
2.2.3 NCU/NX Layout as Offset Solution
The DRIVE-CLiQ connection of the SINAMICS components permits any layout of the NCU /
NX modules. The layout of the NCU / NX directly in the drive group is thus not mandatory.
The installation in these cases in made using fastening clips or spacers.
/LQH
0RGXOH
1;
1&8
'5,9(&/L4

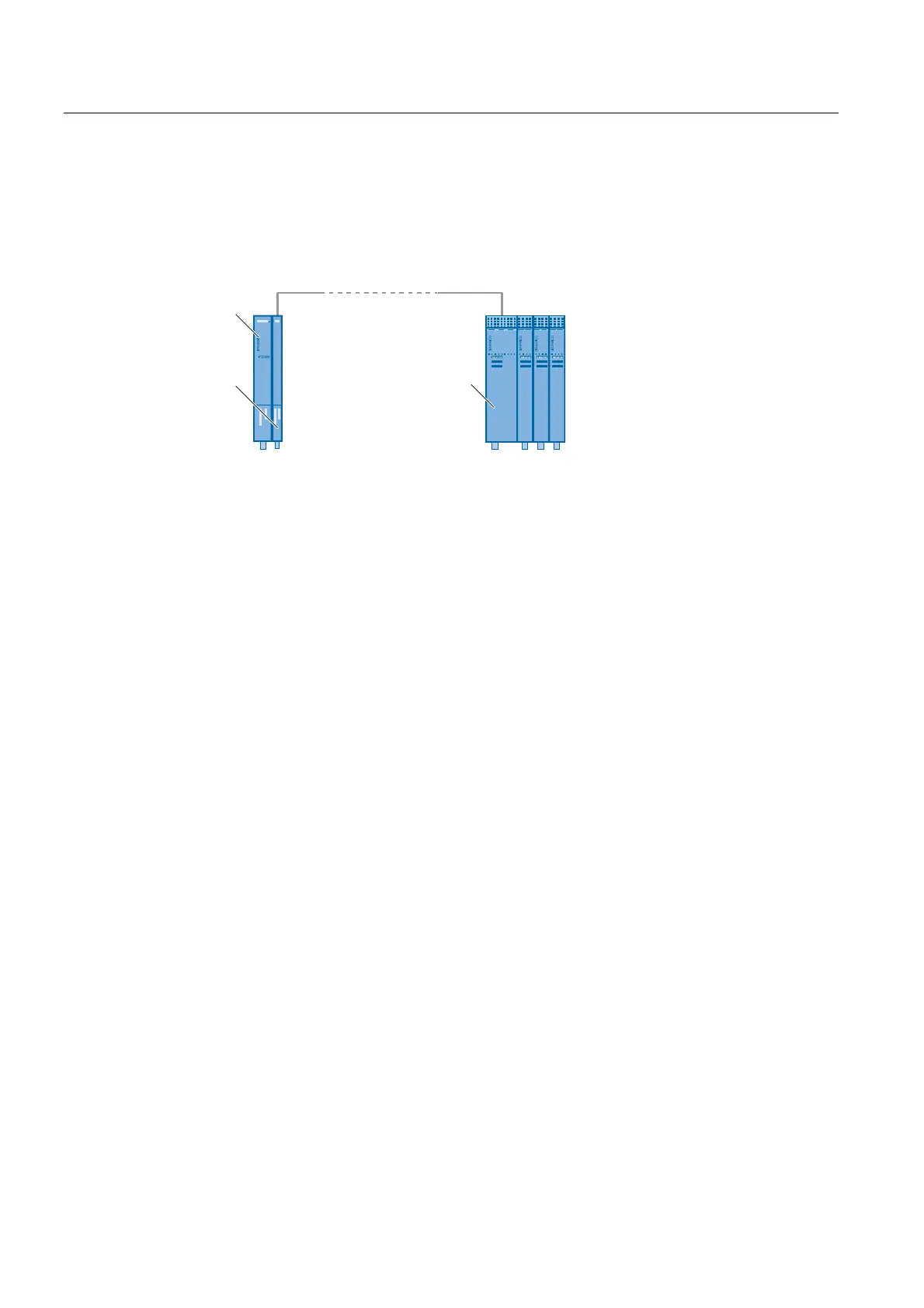

Figure 2-8 NCU/NX as offset solution
