Structure of the drive group
2.1 Structure
Guide for the SINUMERIK 840D sl machine configuring
2-6 Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
2.1.4 Center infeed (single row construction) for 55/80/120 kW Line Module
Another variant of the DC link supply is the center infeed. For the 55 / 80 / 120 kW Line
Modules, the DC link can be fed from both the left- and right-hand side of the device. This
allows the drive group to be mounted on both sides. The installation guidelines are the same
as the previous guidelines.
3N:3N:
/LQH
9$&
/LQHILOWHU /LQHFKRNH
/LQH
0RGXOH
0RWRU
0RGXOHV
0RWRU
0RGXOHV

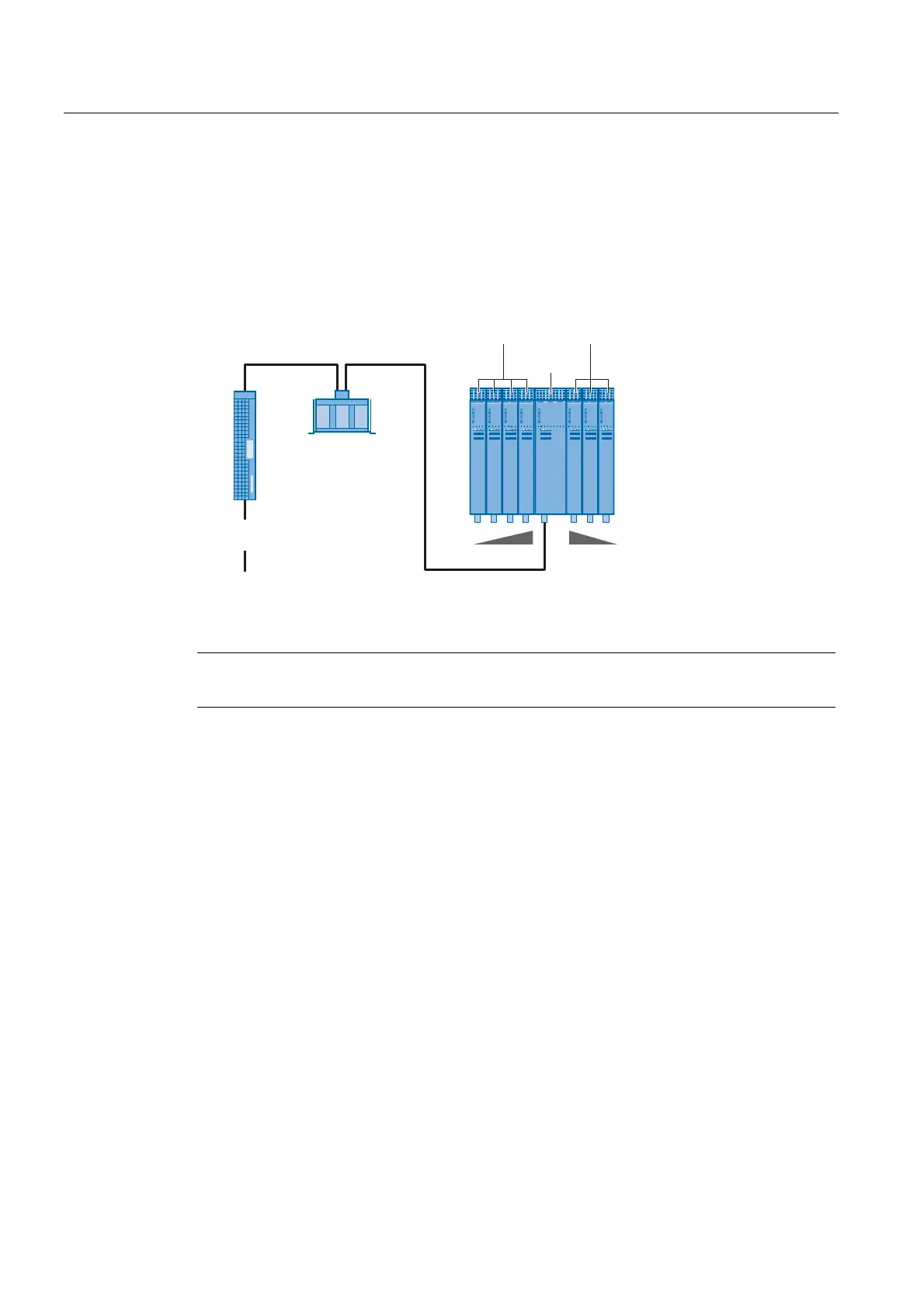

Figure 2-5 Center infeed construction
Note
For the layout of the NCU 7x0 or NX1x, see "Layout of the Components"
