Structure of the drive group
2.4 Shield Connection
Guide for the SINUMERIK 840D sl machine configuring
Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
2-13
2.4 2.4 Shield Connection
2.4.1 SINAMICS Components Dimension Drawings (Internal Air Cooling)

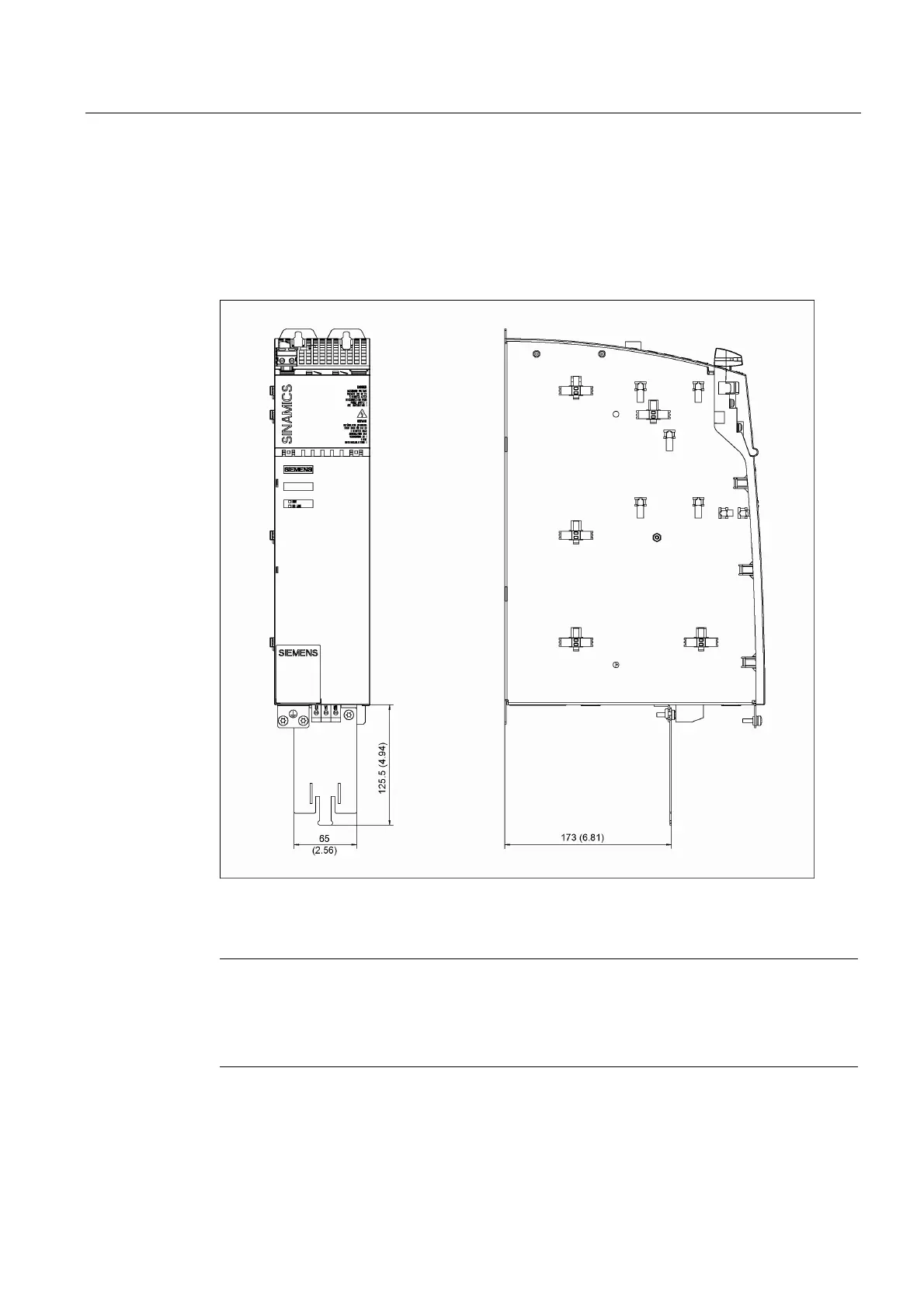

Figure 2-12 Dimension drawing of shield terminal plate on a 100 mm Line Module with internal air
cooling
Note
The shield connecting plate is part of the scope of supply of a 100 mm Line Module.
Recommended shield contacts: from Weidmüller, Order No. KLBÜ CO4
Weidmüller: http://www.weidmueller.com
For Motor Modules 50 mm and 100 mm wide, the motor cable shield is connected through
the motor connector housing.
