8.1 8.1 Distributed Installation
For the distributed installation, an external busbar is used for the DC link connection. From
there, the cables are led to the power units. DC link rectifier adapters are used for the
connection to the power units..
) ) ) )
/LQH
0RGXOH
0RWRU
0RGXOHV
/LQH
9$&
/LQHILOWHU /LQHFKRNH
([WHUQDO
'&OLQNEXVEDU
PD[P
'&OLQNUHFWLILHU
DGDSWHU

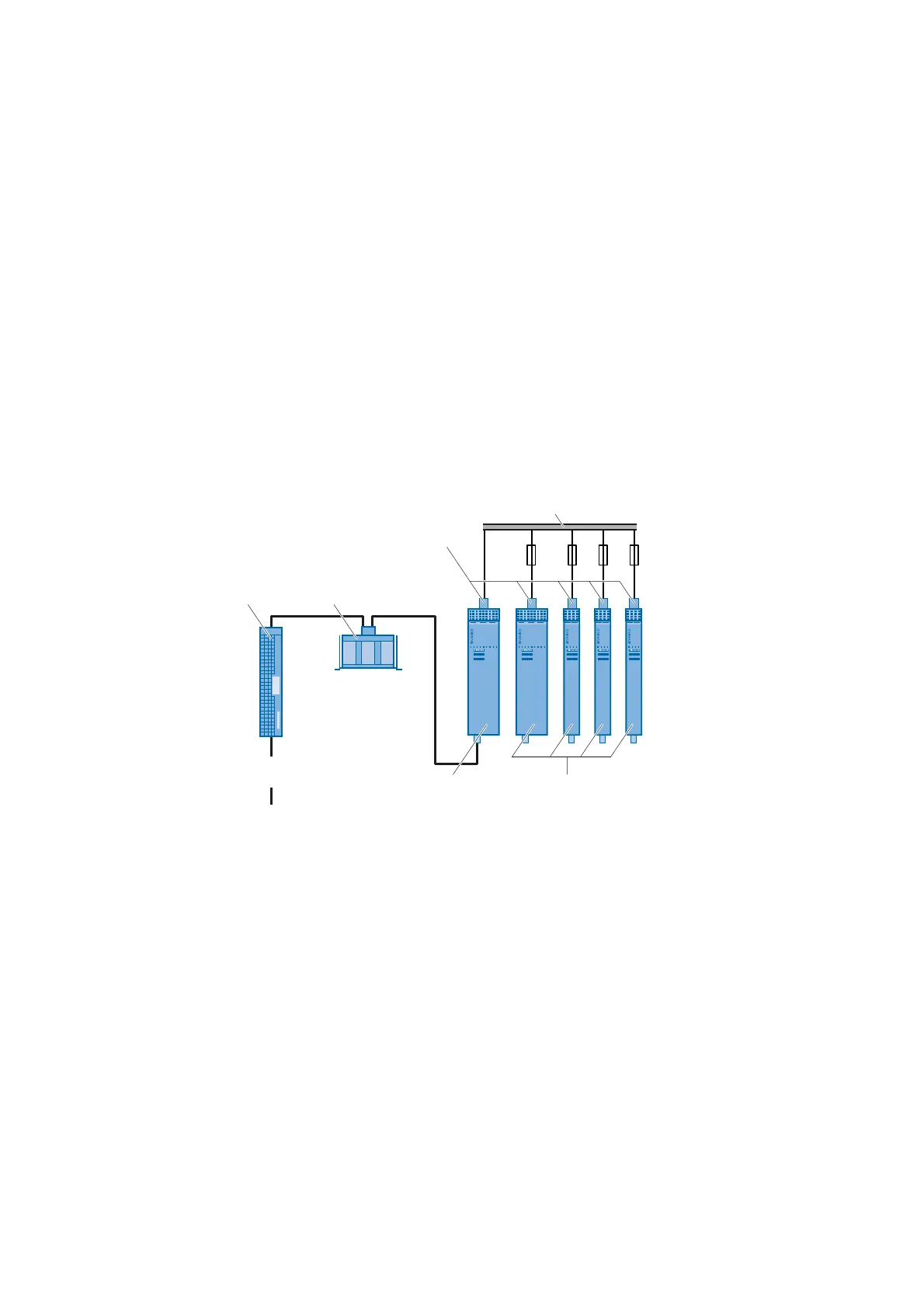

Figure 8-1 Distributed Installation
Depending on the component width, two variants are available:
Component width 50/100 mm
DC link rectifier adapter with connection possibilities from 0.5 mm² to 10 mm²,
max. 36 A.
Component width 150 ... 300 mm
DC link rectifier adapter with connection possibilities from 35 mm² to 95 mm²,
max. 240 A.
