Connection of the Components
5.11 Brake Connection
Guide for the SINUMERIK 840D sl machine configuring
Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
5-75
8
9
%5
:
%5
;
˽
0
a
(
0RWRU
0RGXOH
0RWRU
;8
;9
%5
;:
%5
;
˽
0
a
(
0RWRU
0RGXOH
0RWRU

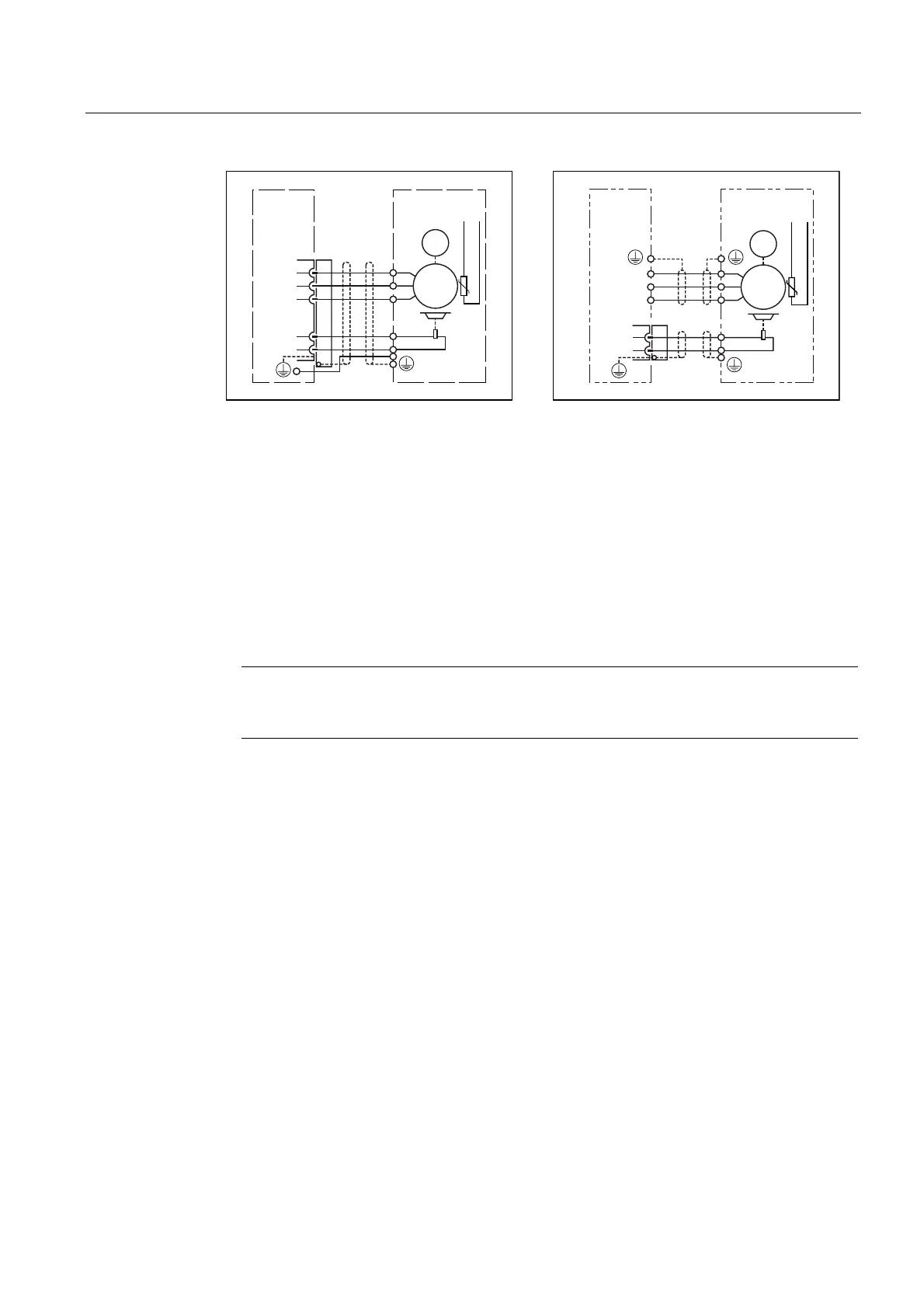

Motor Module 3 A to 30 A;
2 x 3 A to 2 x 18 A
Motor Module 45 A to 200 A
The brake outlet is internally equipped with an overvoltage protection circuit. This reduces
high voltage peaks that can occur when the brake is switched off and protects the electronic
outputs. An additional external protective circuit for the brake output is not required. The
brake output is short-circuit resistant. The following monitoring is also performed on the
brake outlet:
● Current flow only when the brake is switched on; monitors whether a consumer is
attached
● Wire breakage only when the brake is switched on
Note
The above-mentioned monitoring is possible only when the brake is directly attached to
the Motor Module without interface contactor.
