Safety Integrated
4.2 SINUMERIK Safety Integrated
Guide for the SINUMERIK 840D sl machine configuring
Manual, 07/2006 Edition, 6FC5397-6CP10-0BA0
4-15
Fail-safe direct starters F-DS1e-x
The fail-safe direct starter with electronic overload protection can either power-up or power-
down the connected motor (implemented in the application through the PLC I/O interface).
Further, when the SG signal is missing at the upstream PM-D F, the PM module can
shutdown the motor in a safety-related fashion.
Depending on the type, three-phase motors up to 7.5 kW can be connected and operated
with integrated protection against overload and short-circuit.
On the one hand, the SG 1...SG 6 safe shutdown group will be assigned to the fail-safe
motor starter using the STEP 7 hardware configuration. On the other hand, the assignment
is realized using the coding connector on the terminal module of the motor starter. Both
assignments must match one another.
)DLOVDIH
)'6H[GLUHFW
VWDUWHUV
6ZLWFKLQJJURXSV
VWDWXVGLVSOD\
6*6*

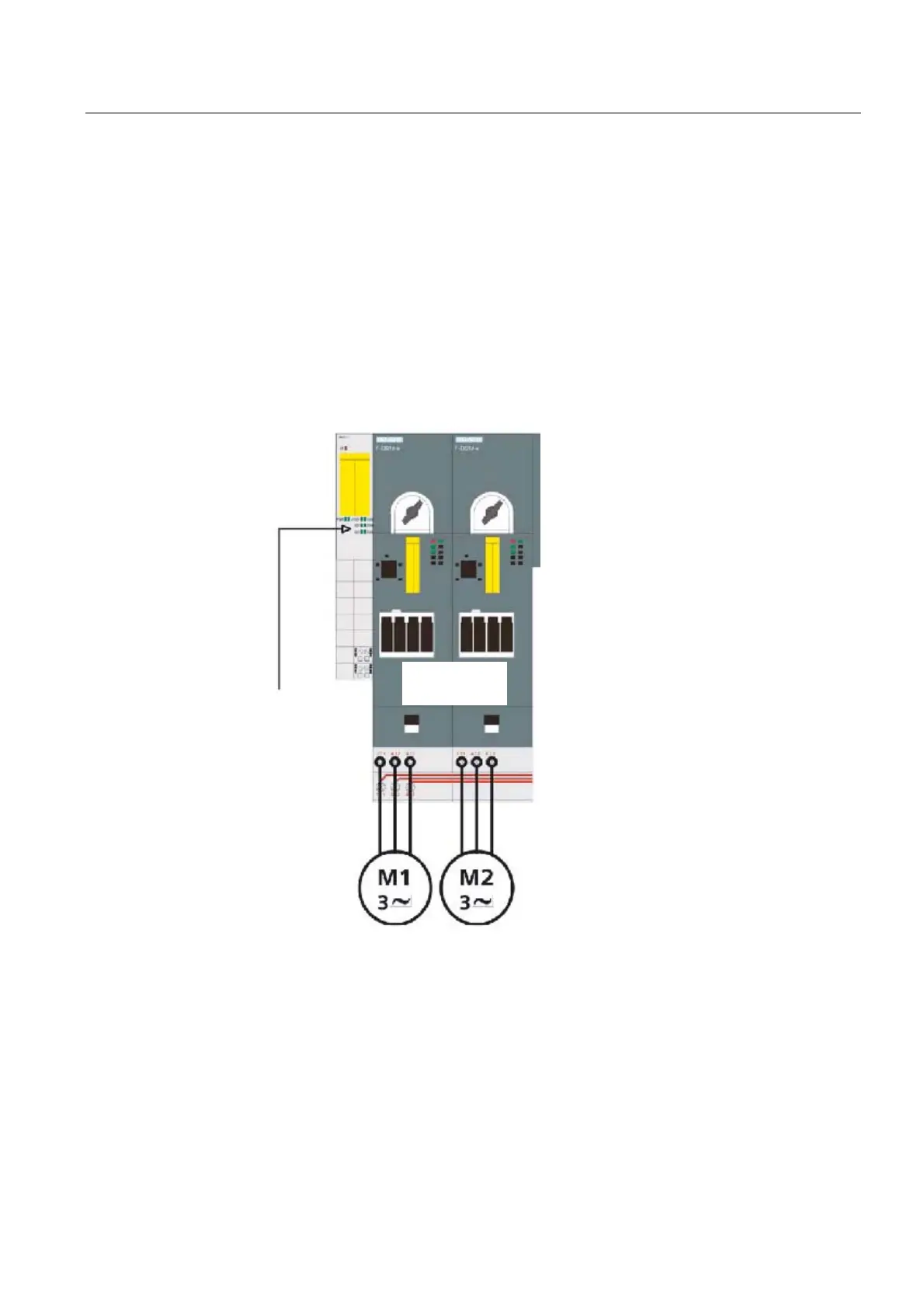

Figure 4-9 Signal assignment, power module PM-D F 24 V DC PROFIsafe, fail-safe motor starter
Significance and use of the individual signals:
No (external) wiring is require (except for the 24 VDC power supply). The safety-oriented
shutdown is performed internally using the SG 1...SG 6 shutdown groups. In addition to the
safety-oriented shutdown using the upstream PM-D F PROFIsafe module, if the shutdown
group has been enabled, the motor starter can be enabled and disabled using its PLC output
interface.
