Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
270 Configuration Manual, 10/2014, C79000-G8976-C187-22
Graphic representation of the statistics
This page displays the number of frames received at each port graphically. The display is
dependent on the frame length. There is a separate element in the graphic for each of the
following ranges:
● 64 bytes
● 65 - 127 bytes
● 128 -255 bytes
● 256 -511 bytes
● 512 -1023 bytes
● 1024 -1518 bytes

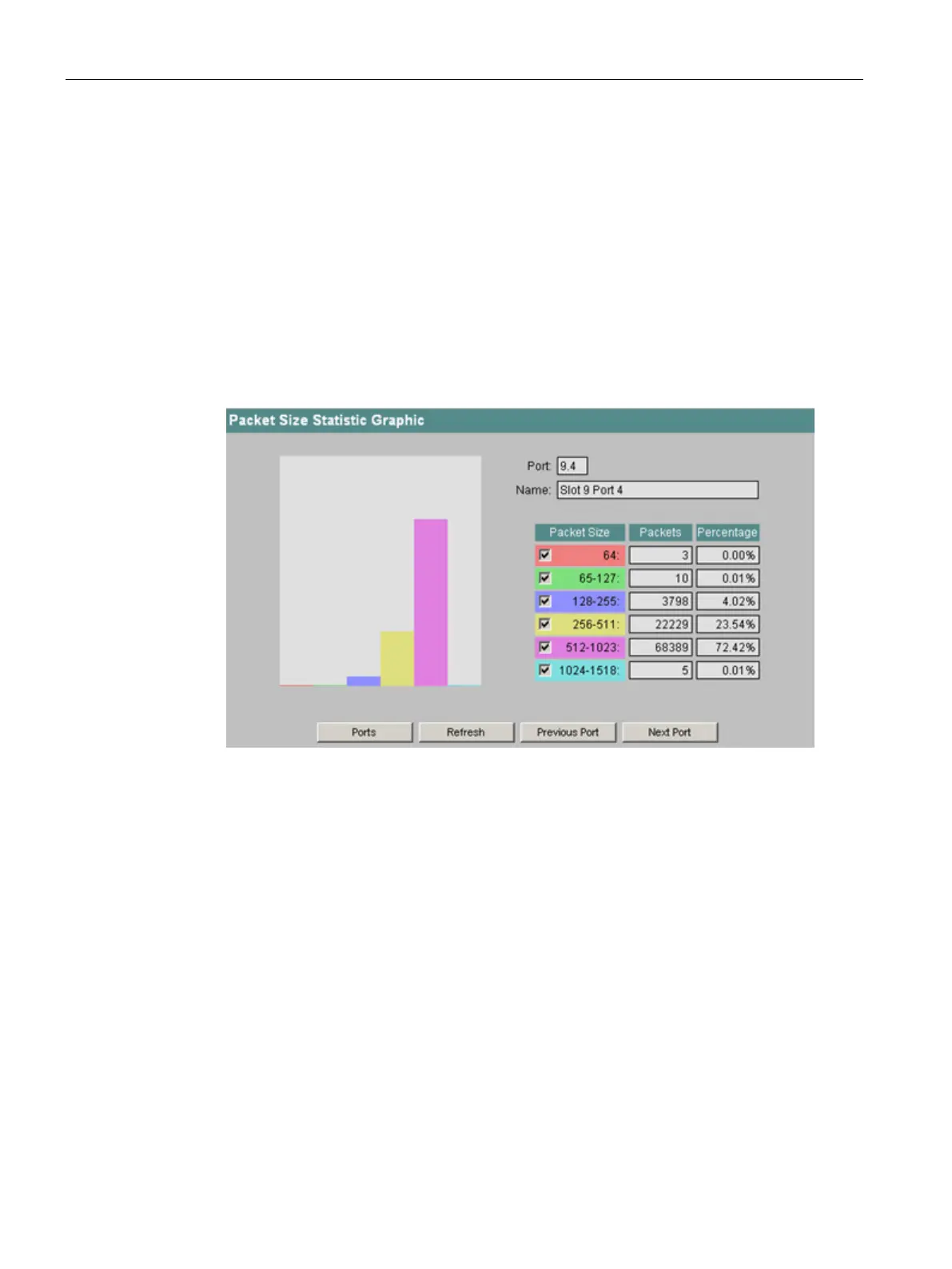

Figure 4-120 Packet Size Statistic Graphics
With the check box in the "Packet Size" column, you decide the content of the graphic. The
value in the "Packets" column in the graphic is only displayed for a certain range if the
appropriate check box is selected. The "Percentage" column shows the packets in a certain
length range as a percentage of the total packets for this port. When the percentage is
calculated, ranges are included only if their check boxes are selected.
With the "Previous Port" and "Next Port" buttons, you can change to the display of the
previous or next port.
