Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
Configuration Manual, 10/2014, C79000-G8976-C187-22
205
4.5.14
MSTP (SCALANCE X-300/X408)
4.5.14.1
Multiple Spanning Tree Configuration
Multiple Spanning Tree
The Multiple Spanning Tree Protocol (MSTP) is a further development of the Rapid
Spanning Tree Protocol (RSTP).
With MSTP, in contrast to RSTP, there is not only one Rapid Spanning Tree established.
With MSTP, several independent Rapid Spanning Tree instances are created for various
VLANs. This allows the traffic from different logical networks to be routed via different paths.
Multiple Spanning Tree configuration with an IE switch
The "Multiple Spanning Tree Configuration" screen opens after you click the "MSTP" folder
icon.
In this screen, you can display and set the parameters for the Multiple Spanning Tree
Protocol.

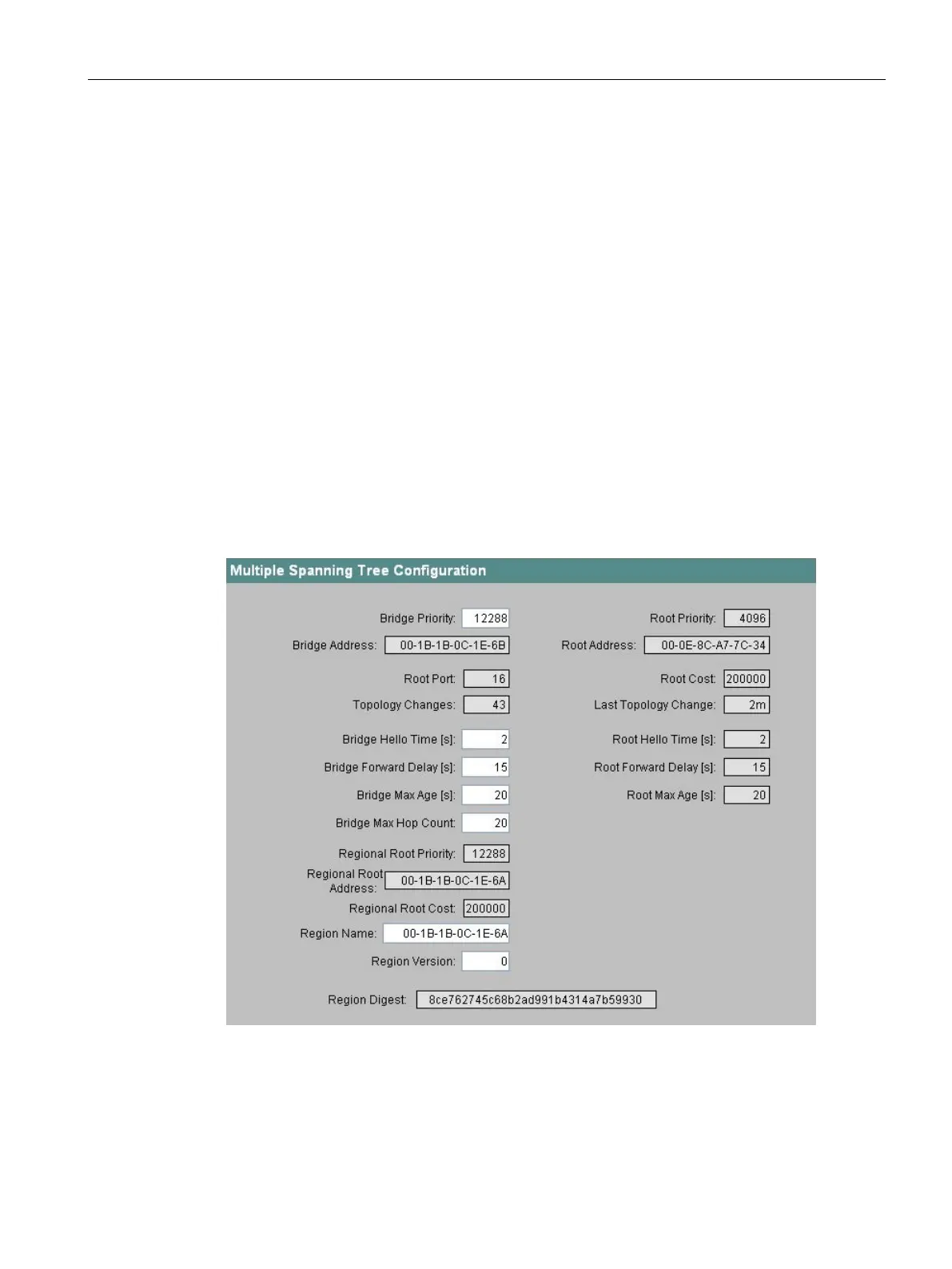

Figure 4-87 Multiple Spanning Tree Configuration
The following boxes relate to the configuration of the device and the root bridge.
The left column relates to the configuration of the device. The right-hand column shows the
configuration of the root bridge that can be derived from the spanning tree frames received
