Configuration using Web Based Management and Command Line Interface
4.2 The System menu
SCALANCE X-300 / X-400
48 Configuration Manual, 10/2014, C79000-G8976-C187-22
4.2.5
System Save & Load via TFTP
Data exchange with a TFTP server
WBM allows you to save configuration information in an external file and to load this
information on the IE switch from an external file. You can also save the log information in a
file or load new firmware from a file. You can make the entries required for this in the Save &
Load menu.

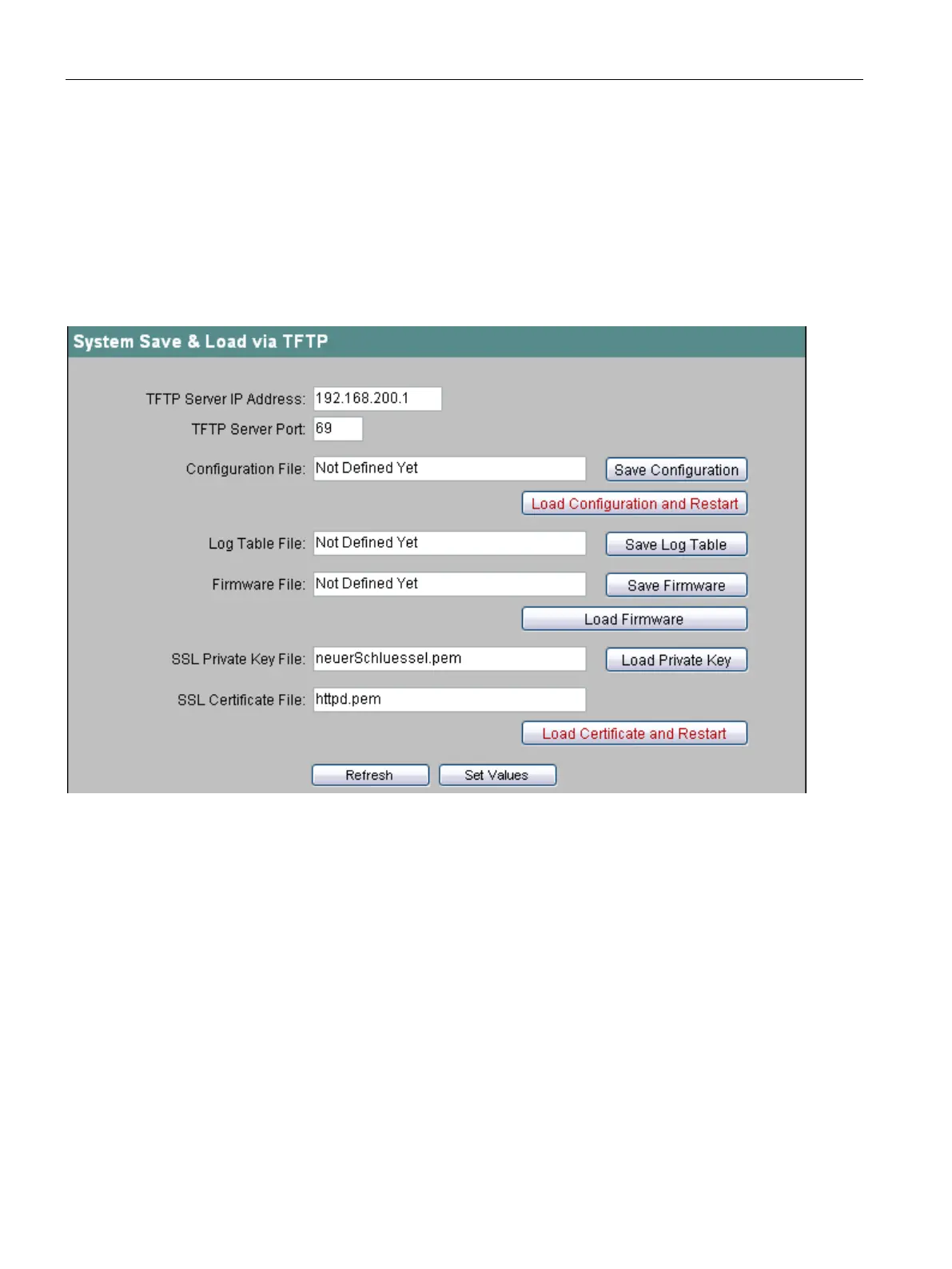

Figure 4-9 System Save & Load
TFTP Server IP Address
The IP address of the TFTP server with which you want to exchange data.
TFTP Server Port
The port of the TFTP server over which data exchange will be handled. If necessary, you
can change the default value 69 to your own requirements.
Configuration File
Name and, if necessary, folder path of the configuration file (maximum 32 characters) that
you want to load on the IE switch or where you want to store the current configuration
information.
Log Table File
Name and, if necessary, path of the file (maximum of 32 characters) in which you want to
save the content of the log table.
