Configuration using Web Based Management and Command Line Interface
4.5 The Switch menu
SCALANCE X-300 / X-400
194 Configuration Manual, 10/2014, C79000-G8976-C187-22
4.5.12.5
X-300 VLAN Port Priority Mapping
VLAN Port Priority Mapping
This page shows the priority with which a port sends received frames.

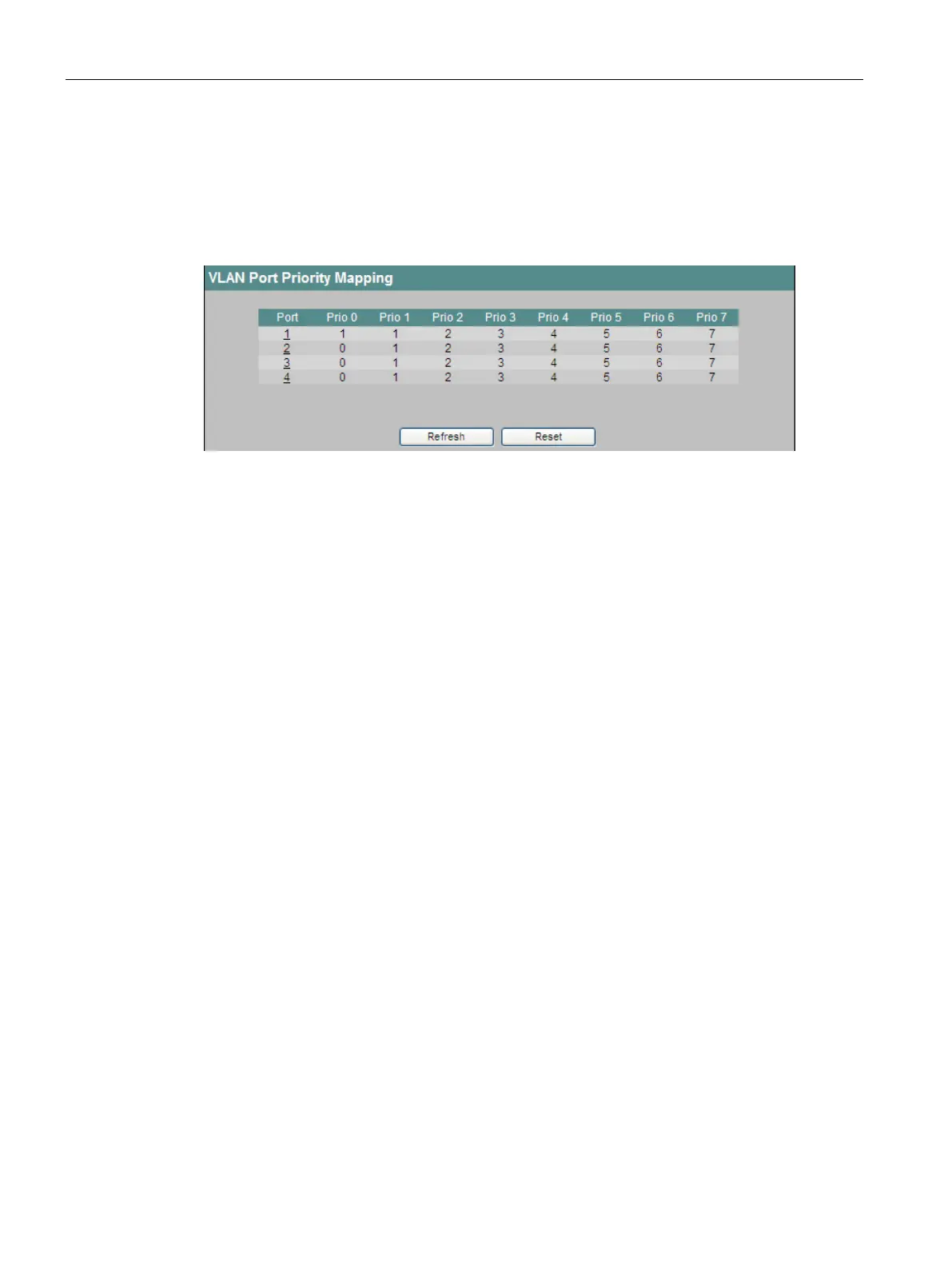

Figure 4-82 VLAN Port Priority Mapping
Port
Port to which the following information relates.
Prio 0
Shows the priority with which frames are sent that were received with priority 0.
For port 1, for example, the setting was made so that frames received with priority 0 are sent
with priority 1.
The "Prio 1" to "Prio 7" columns are read in exactly the same way.
VLAN Priority Remap Configuration
The "VLAN Priority Remap Configuration" screen appears if you have clicked on a port on
the "VLAN Port Priority Mapping" page.
Depending on the priority when receiving, you can change the priority of the frames with
which they are sent.
