Configuration using Web Based Management and Command Line Interface

4.7 The Router menu (SCALANCE X414-3E)

SCALANCE X-300 / X-400

Configuration Manual, 10/2014, C79000-G8976-C187-22

283

Creating a new IP subnet

You can create a new subnet by clicking the "New Entry" button in the "Router Subnets"

dialog. You make the settings for the subnet in the "Router Subnet Configuration" menu.

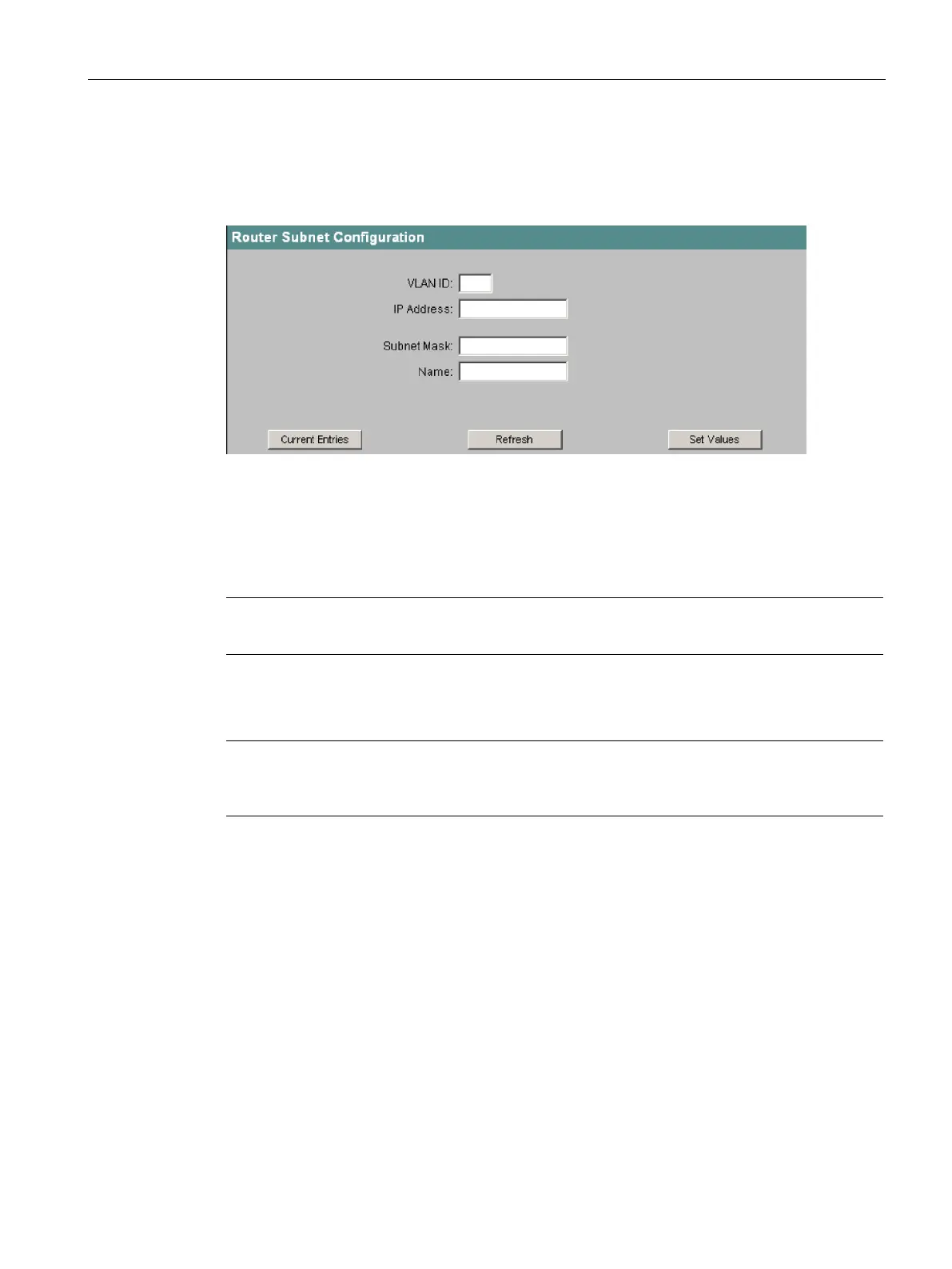

Figure 4-129 Router Subnets Configuration

VLAN ID

Here, enter the ID of the VLAN (VID see the section "Current VLAN Configuration menu

item") via which packets of this IP subnet will be transmitted (range of values of the ID: 1 to

4094).

Note

The agent VLAN ID must not be used again. All other IDs can be used more than once.

IP Address

Enter the IP address of the IP subnet. IP addresses must not be used more than once.

Note

By appending the "/" character and a number between 1

and 30, the subnet can also be

defined at the same time.

Subnet Mask

Here, enter the subnet mask of the IP subnet you are creating. The subnet mask must be

made up of a left-justified bit field of ones.

Name

Here, enter the name of the subnet (this has no effect on the functionality).
