Configuration using Web Based Management and Command Line Interface
4.1 General information on Web Based Management and Command Line Interface
SCALANCE X-300 / X-400
Configuration Manual, 10/2014, C79000-G8976-C187-22
35
Starting Web Based Management and logging on
Note
For security reasons, make sure that you change the original factory
-set passwords:
User name "admin" = password "admin"
User name "user" = password "user".

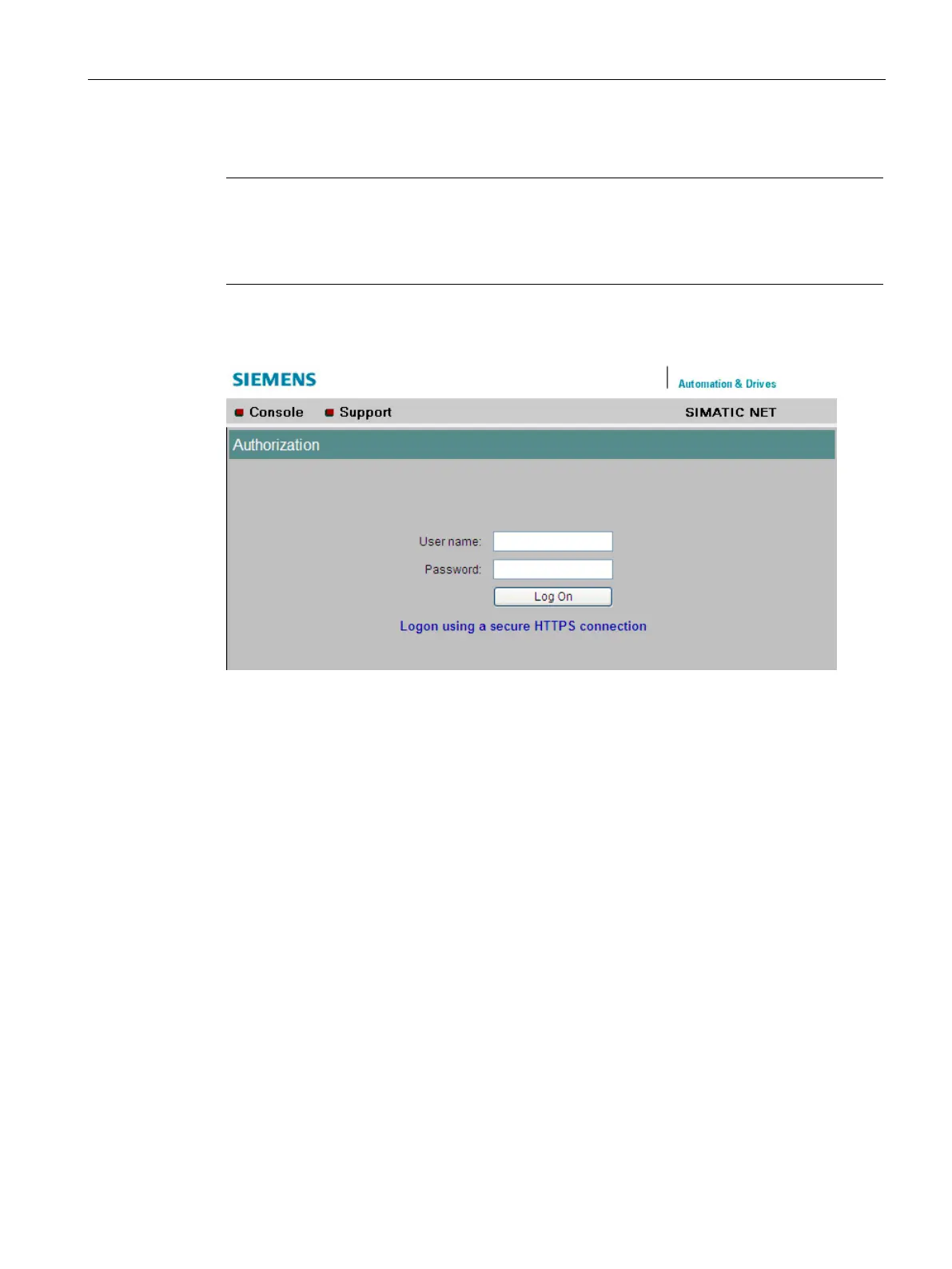

Figure 4-1 Logon dialog
1. Enter the IP address or the URL of the IE switch in the address box of the Web browser.
If there is a problem-free connection to the IE switch, the logon dialog of Web Based
Management appears as shown above.
2. Enter a user name in the "User name" input box.
The following entries are possible:
– admin: With this user name, you have read and write access.
– user: With this user name, you only have read access.
– The user name stored on a RADIUS server: See sections System Passwords & Login
Mode (Page 52) and 802.1x RADIUS Configuration (Page 152).
3. Enter your password.
4. Click the "Log On" button to start the logon.
