Cable Duct and Fan Subassemblies
9-4
S7-400, M7-400 Programmable Controllers Module Specifications
A5E00069467-07
9.2 Cable Duct; (6ES7408-0TA00-0AA0)
Function
The cable duct is used in installations outside the cabinet for
Cable clamping and/or for
Shielding or for
Air circulation without fan assistance

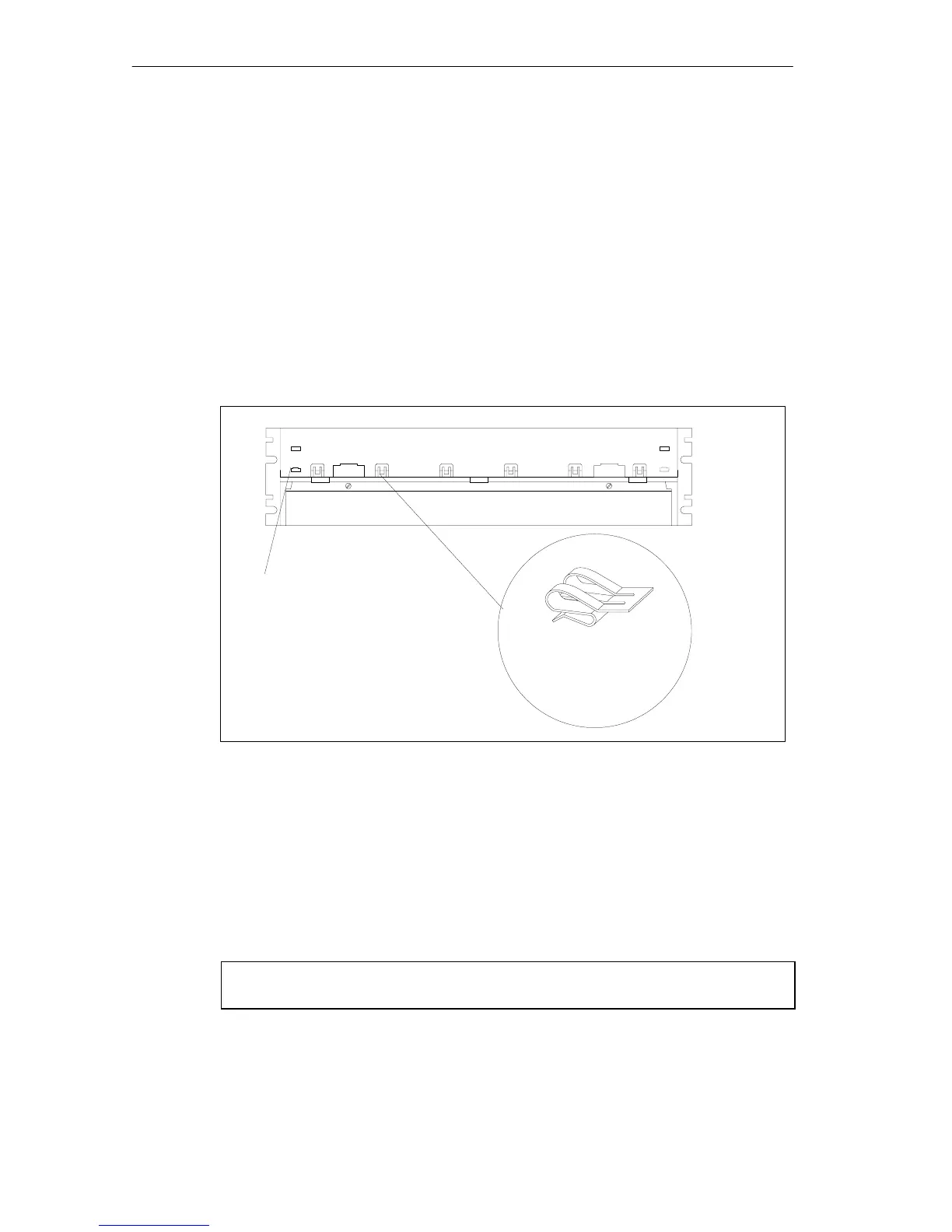

Front View of the Cable Duct
Shielding
clamp
(Side elevation
Scale 1:1)
Eye for
clamping cable
Figure 9-2 Front View of the Cable Channel
Shielding Clamps
If you do not require the shielding clamps supplied, do not install them in the cable
duct.
Technical Specifications
Dimensions W H D (mm) 482.5109.5235
Weight ca. 1200 g
