M7-400 Expansions
12-21
S7-400, M7-400 Programmable Controllers Module Specifications
A5E00069467-07
Permissible Dimensions of AT Modules

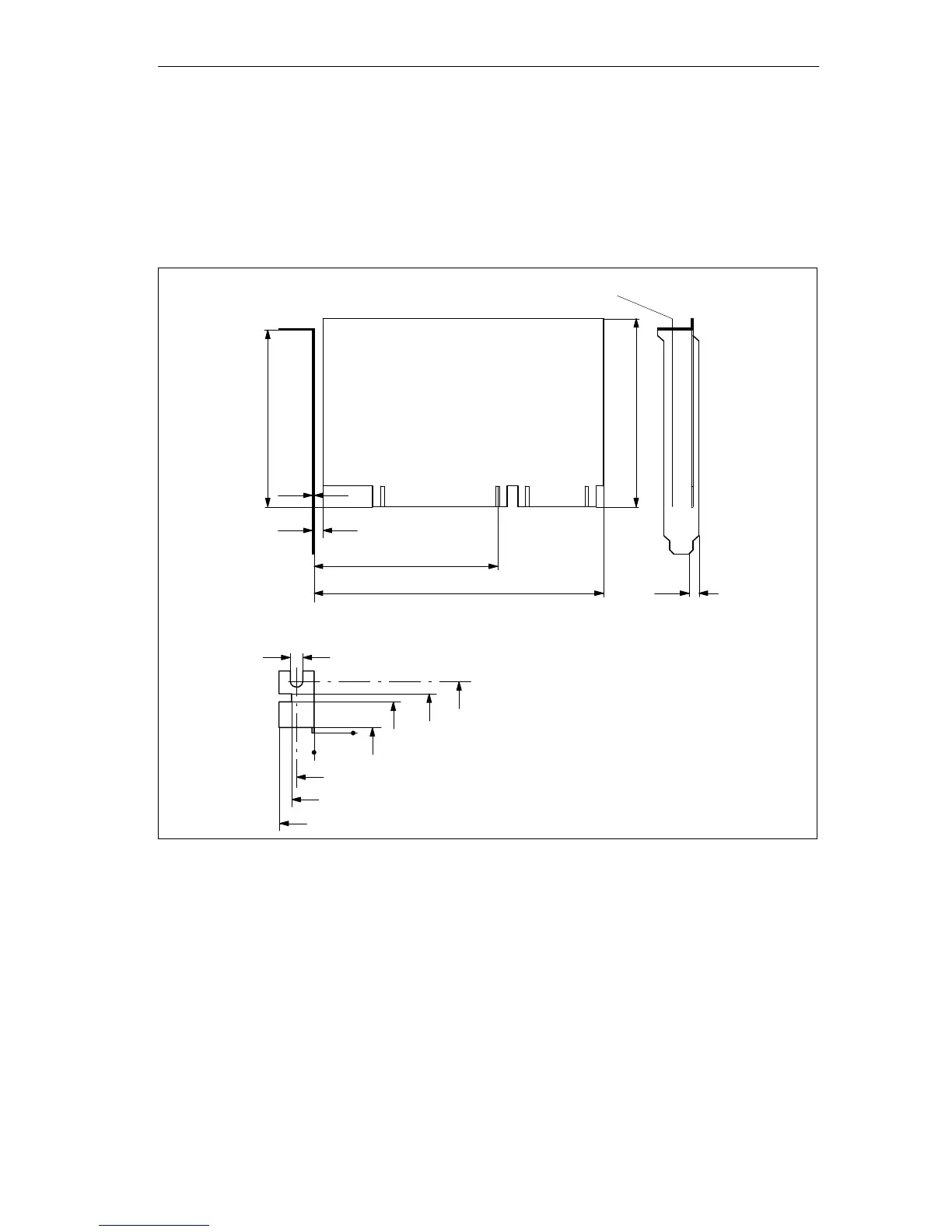

The following illustration shows you the maximum and minimum dimensions in
millimeters that AT modules must meet for the ATM 478 AT adapter module. If
these dimensions are not conformed to, proper installation in the ATM 478 AT
adapter module is no longer possible.
Components max. insertion height 14 mm
0
2.85
10.9
14
18.4
0
5.9
8
12.2
4.3
100.33
106.5 max.
2.84
108.76
0.8
3 min.
164 max.
Figure 12-9 Dimension Specifications for AT Modules to be Installed in an ATM 478
