Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
137

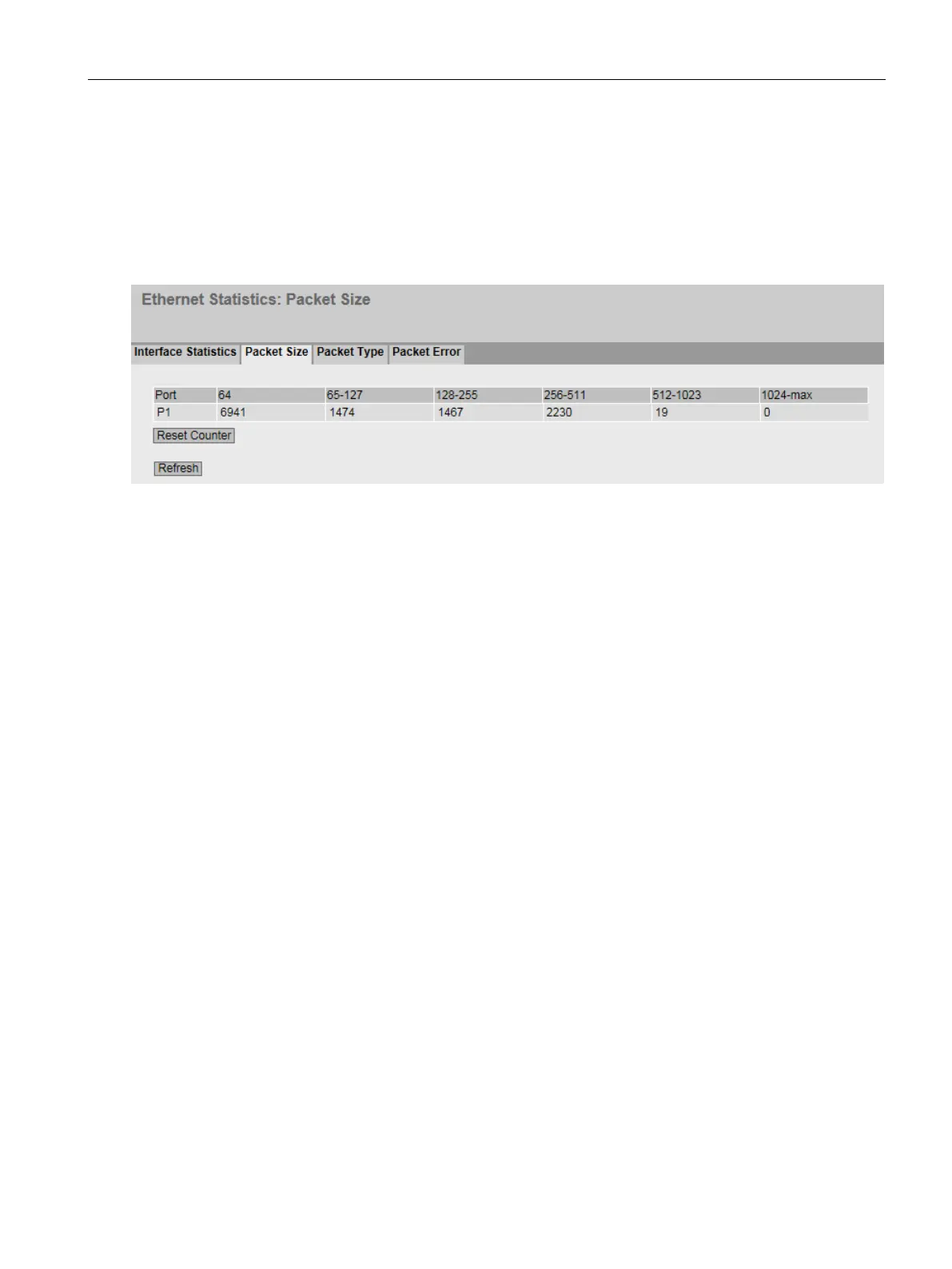

Packet Size
Frames sorted by length
This page displays how many frames of which size were received at each port. You cannot
configure anything on this page.
The table has the following columns:
●
Shows the available ports.
●
The other columns after the port number contain the absolute numbers of incoming
frames according to their frame length.
The following frame lengths are distinguished:
– 64 bytes
– 65 - 127 bytes
– 128 - 255 bytes
– 256 - 511 bytes
– 512 - 1023 bytes
– 1024 - max.
